Auxiliary Input / Output Jack: Service and Repair

Removal

Multi Media Jack

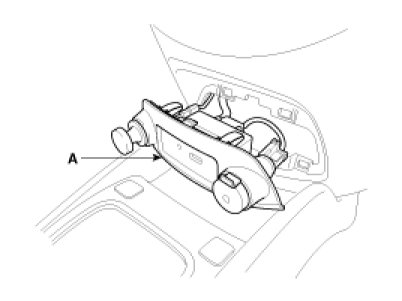

1. Remove the multi media jack assembly from main crash pad (A) by using the trim remover tool.

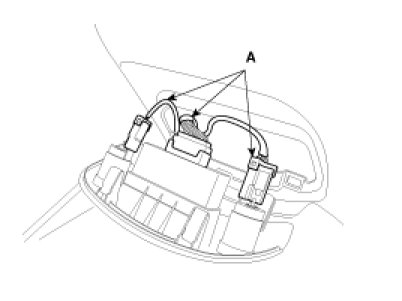

2. Disconnect the jack assembly connector(A)




3. Remove the Multi Media Jack (A).






Installation

Multi Media Jack
1. Connect the Multi Media Jack connector.
2. Install the Multi Media Jack.
