Component Inspection





U0001 High Speed CAN Communication Bus off

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF"

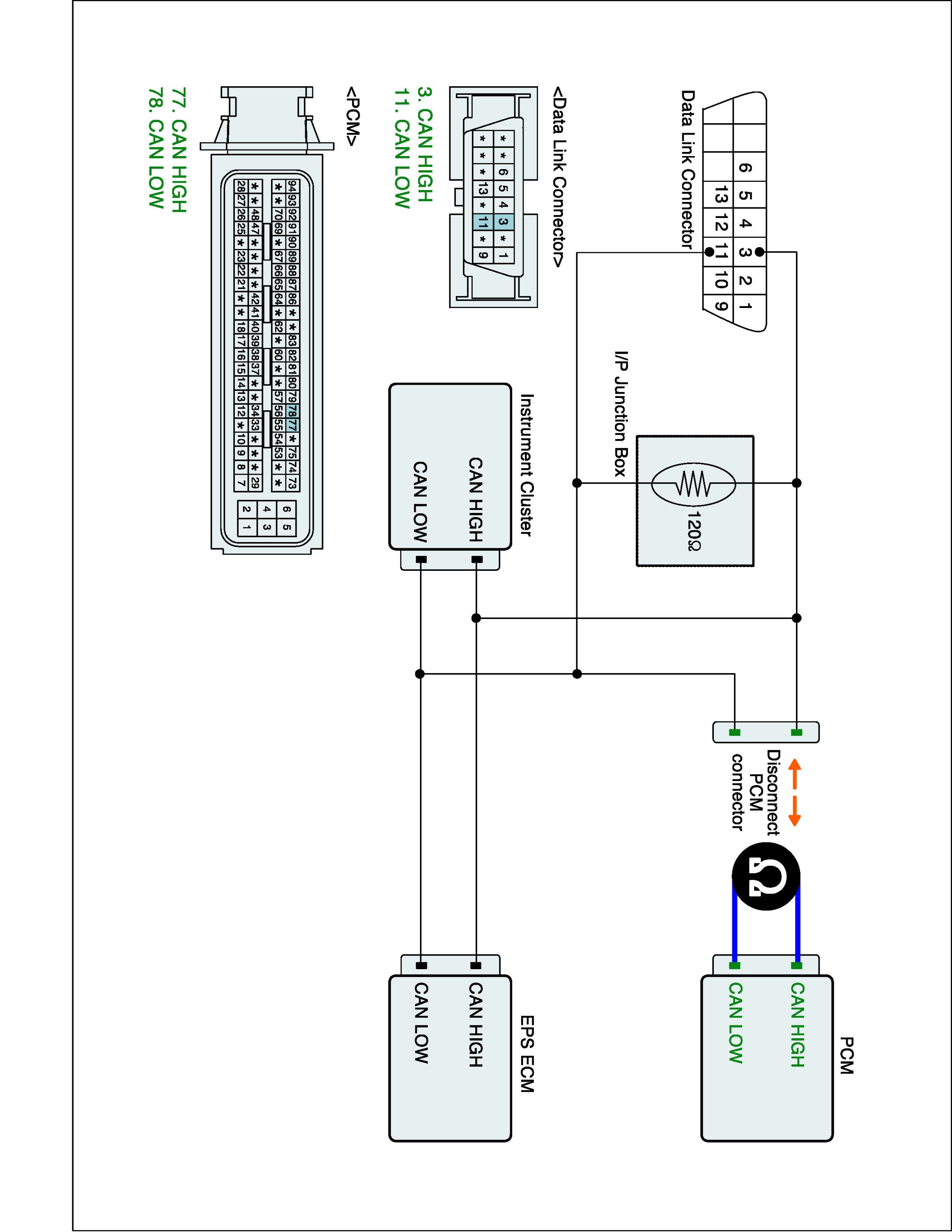

2. Measure resistance between High signal terminal and Low signal terminal of PCM connector (PCM side).

Specification :Approx. 110 - 130 Ohms




3. Is resistance within the specification?
