Monitor DTC Status

P0760 Shift Control Solenoid Valve \'C\'(2nd Brake Solenoid)

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "PCSV-B (2-4SOLENOID VALVE)" parameter on the GDS
4. Shift gear at each position.

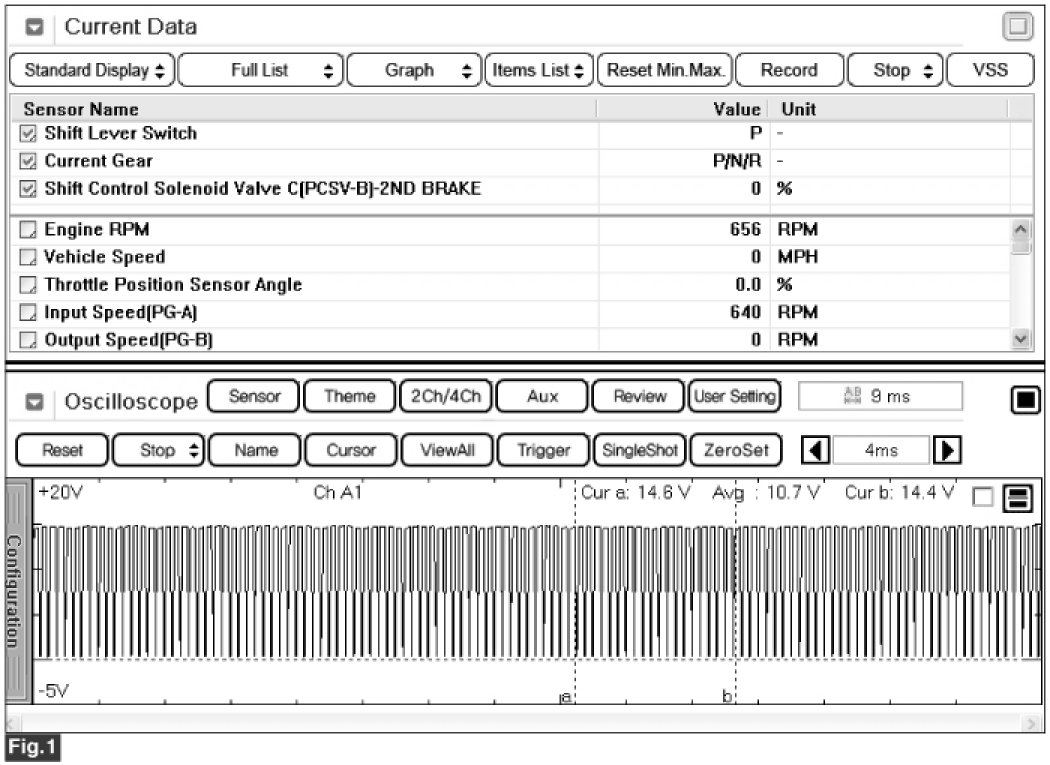

Fig 1) "P, N "

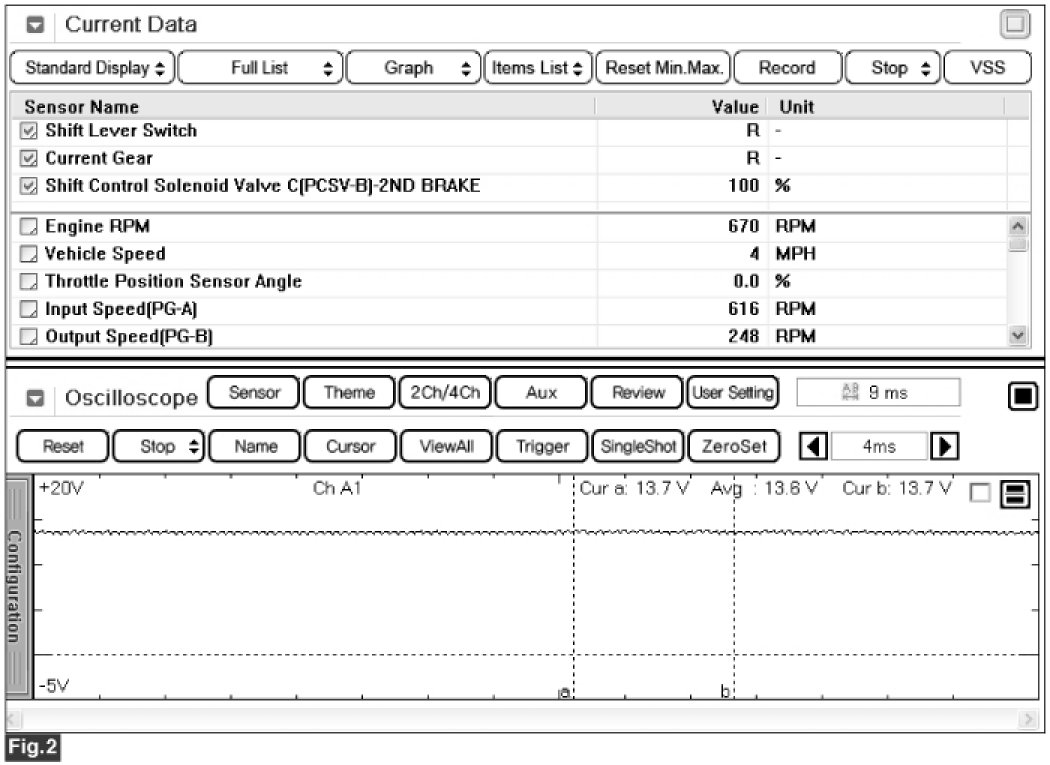

Fig 2) "R"

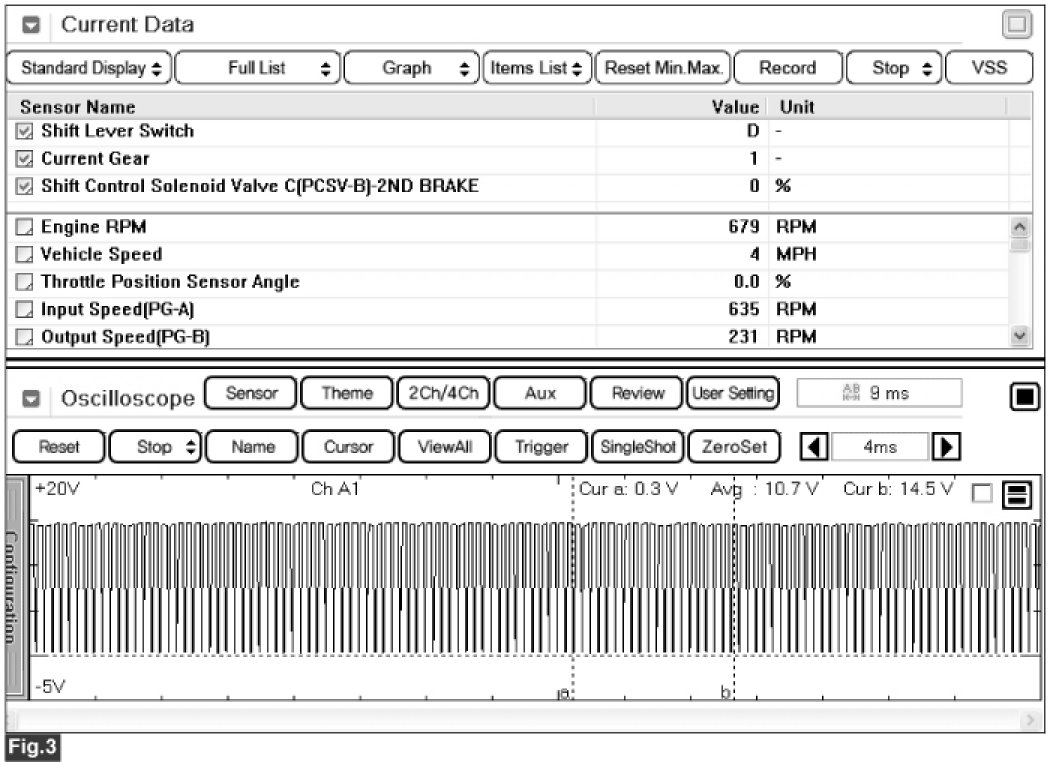

Fig 3)"D Range1st" gear

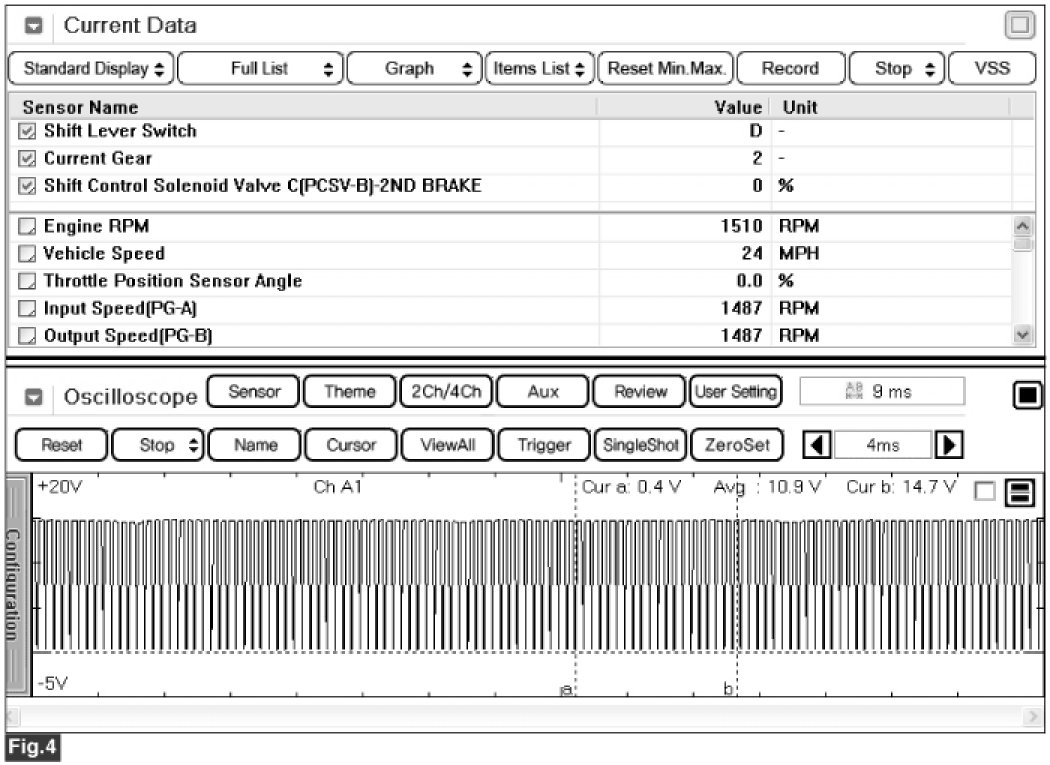

Fig 4)"2nd" gear

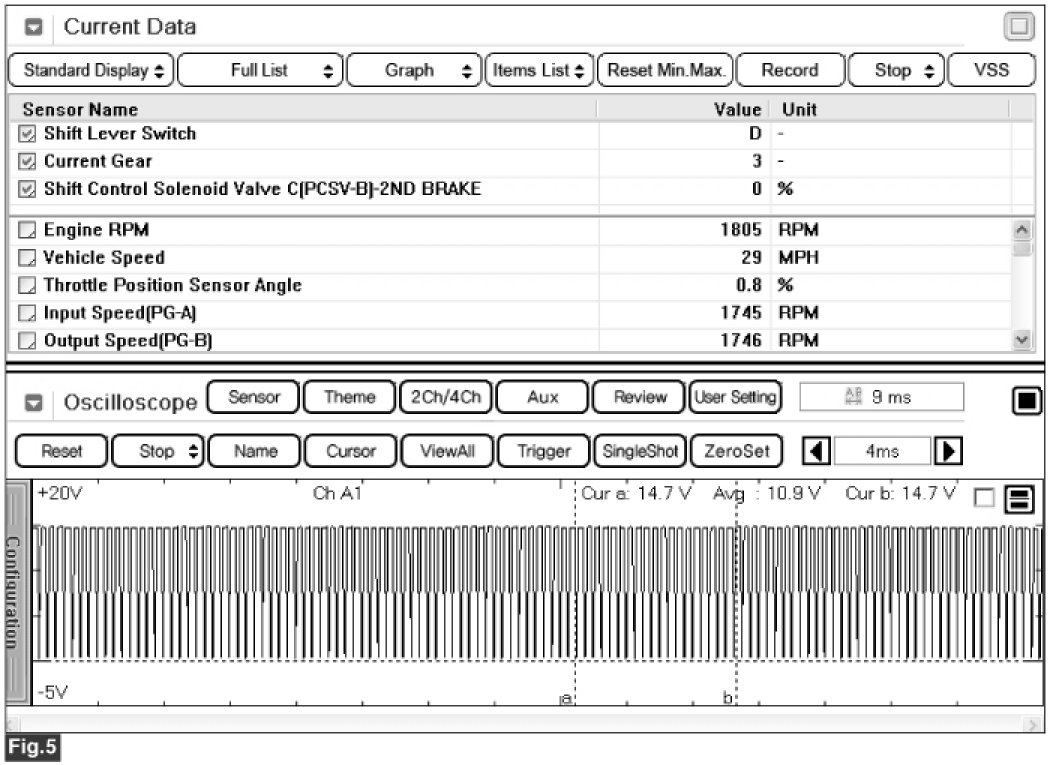

Fig 5) D Range"3rd" gear

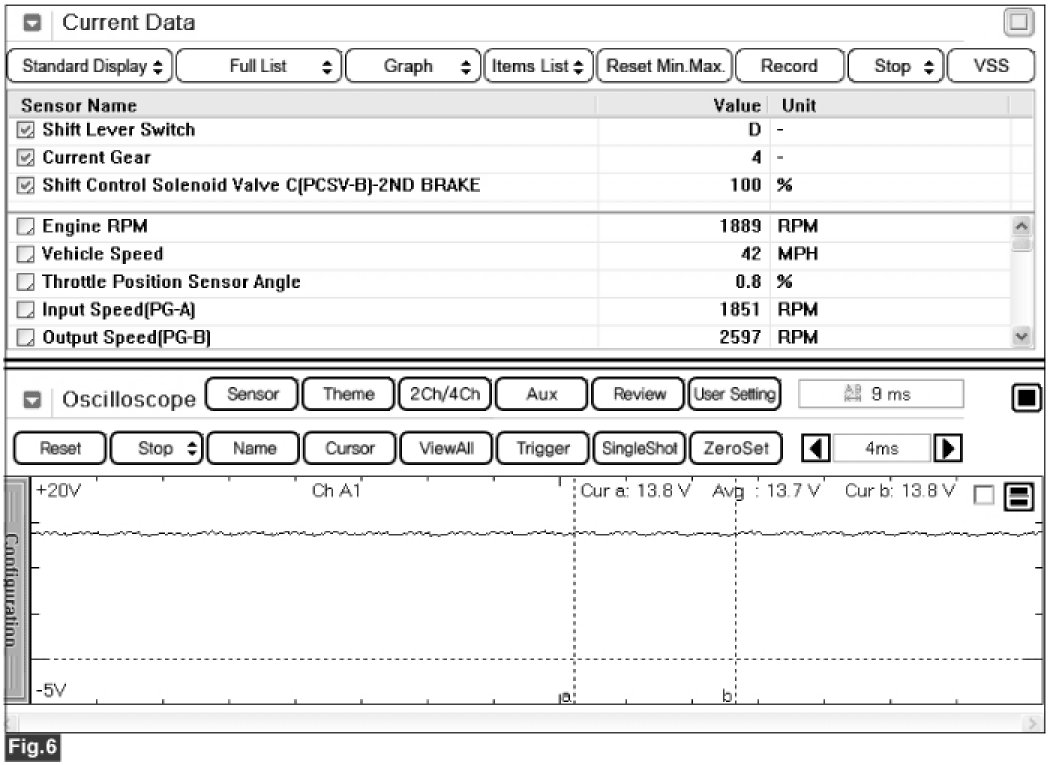

Fig 6) "D Range 4th" gear
5. Does "PCSV-B (2-4SOLENOID VALVE)" follow the referance data?
