Component Inspection

P0734 Gear 4 Incorrect Ratio

Inspection/Repair - Component Inspection

Component Inspection

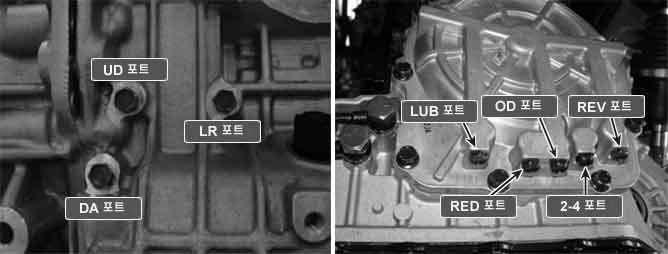

1. Connect Oil pressure gauge to "OD" and "2nd" port.
2. Engine "ON".
3. Drive a car with gear position "4 ".

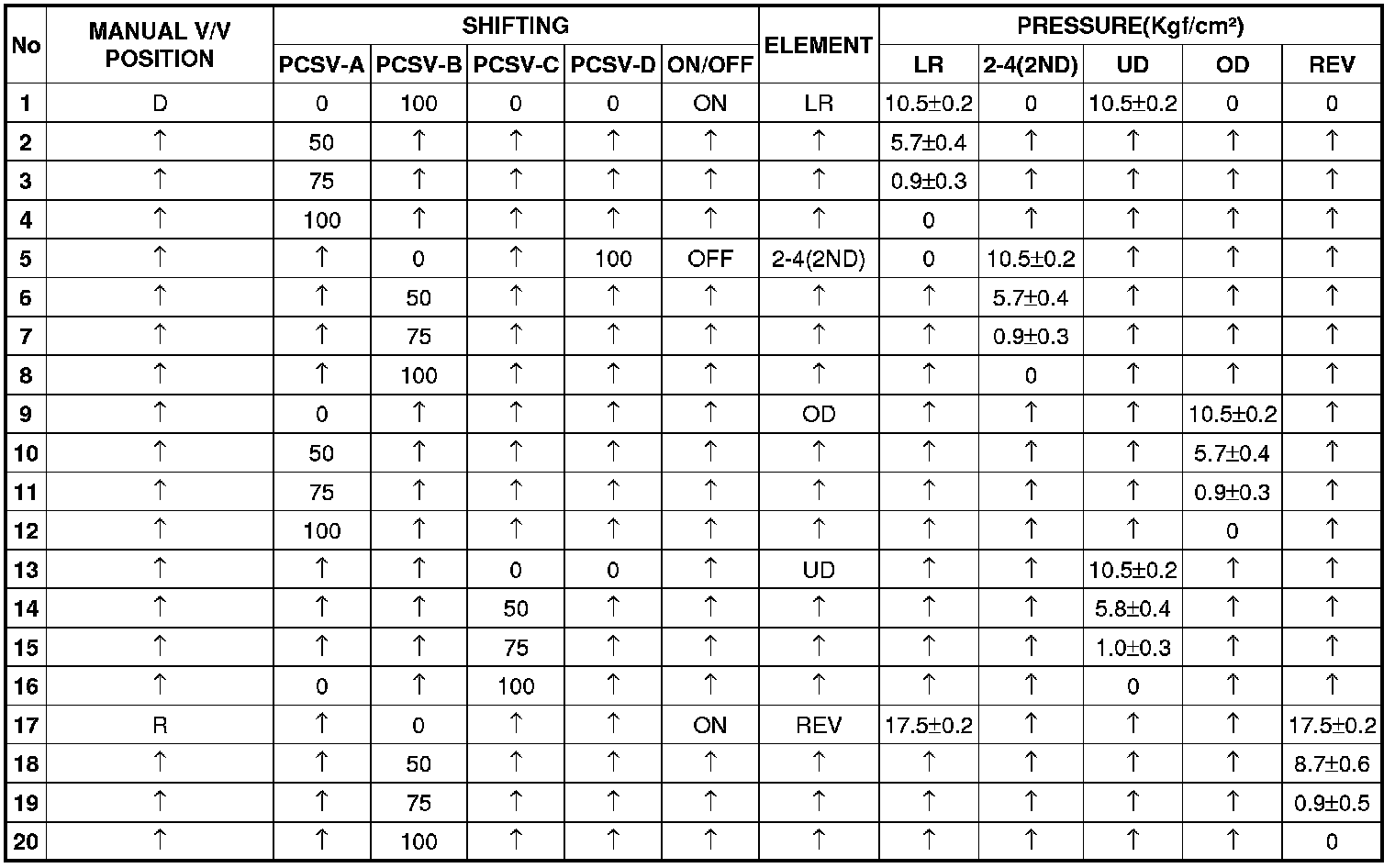

4. Compare it with referance data as below.
Specification :





** The values are subject to change according to vehicle model or conditions
5. Is oil pressure value within specifications?
