Component Inspection

P0733 Gear 3 Incorrect Ratio

Inspection/Repair - Component Inspection

Component Inspection




1. Connect Oil pressure gauge to "UD" and "OD" port.
2. Engine "ON".
3. Disconnect the solenoid valve connector.
4. Drive a car with gear position 3 in fail mode.
5. Compare it with referance data as below.

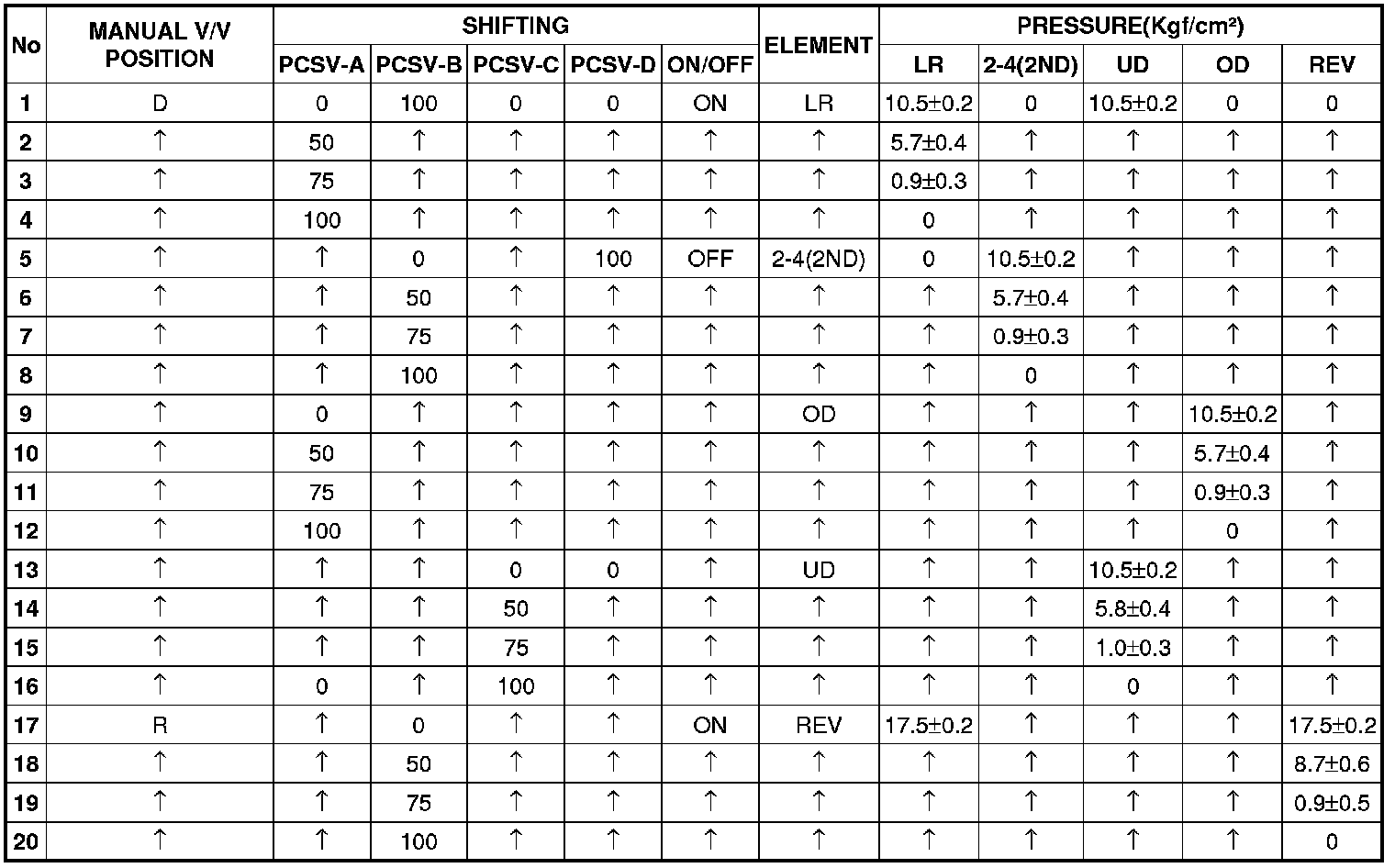

Specification :





** The values are subject to change according to vehicle model or conditions
6. Is oil pressure value within specifications?
