Component Inspection

P0731 Gear 1 Incorrect Ratio

Inspection/Repair - Component Inspection

Component Inspection




1. Connect Oil pressure gauge to "UD" and "L/R" port.
2. Engine "ON".
3. Drive a car with gear position 1 in "SPORTS MODE".
4. Compare it with referance data as below.

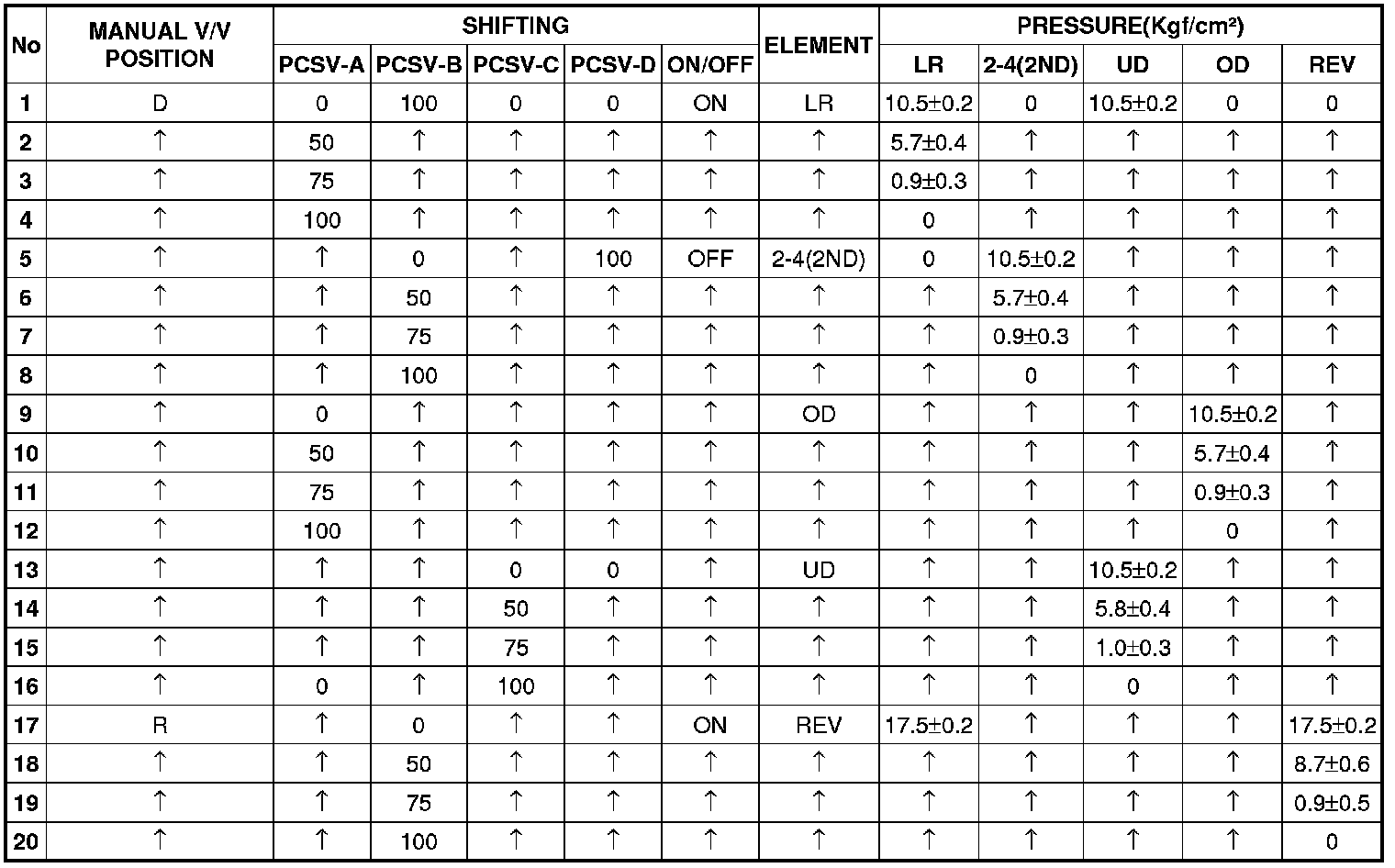

Specification :





** The values are subject to change according to vehicle model or conditions
5. Is oil pressure value within specifications?
