W/Harness Inspection

P0605 Internal Control Module Read Only Memory (ROM) Error

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

Back Up Voltage Inspection
1. Ignition "OFF"
2. Disconnect PCM connector
3. Ignition "ON"

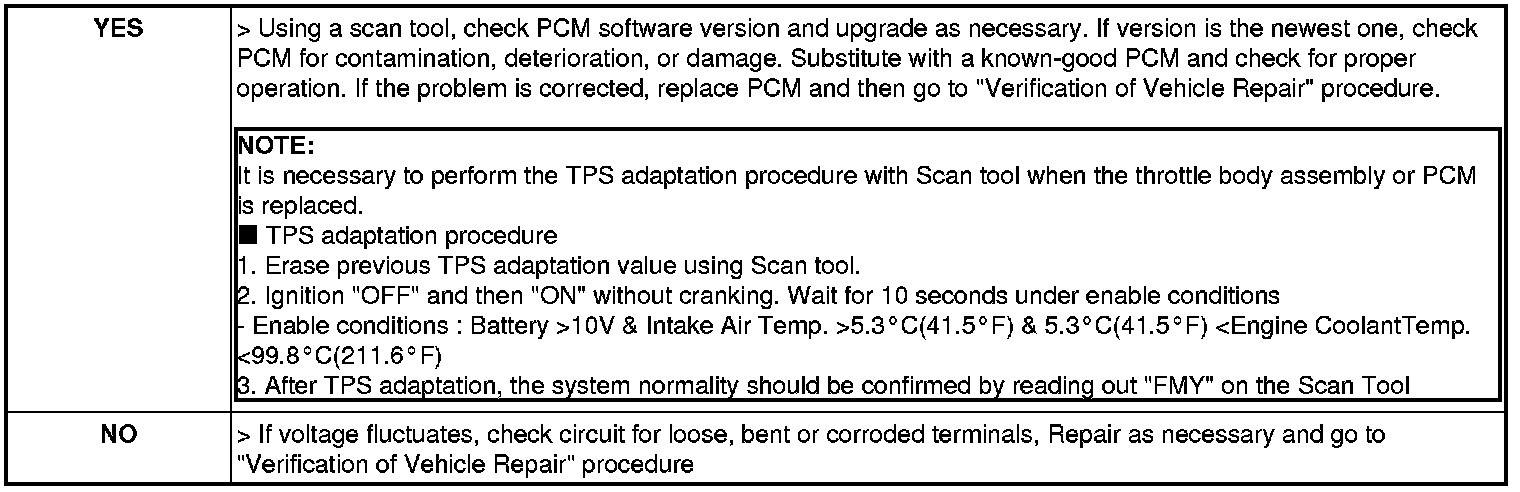

4. Are circuits remaining stable at battery voltage?
