Scantool Diagnosis

C1702 Variant Coding Error

Scantool Diagnosis - Monitor Scantool Data

Monitor Scantool Data

EPS Type recognition
1. Connect scantool to Data Link Connector (DLC)
2. Ignition "OFF" and then Ignition "ON".

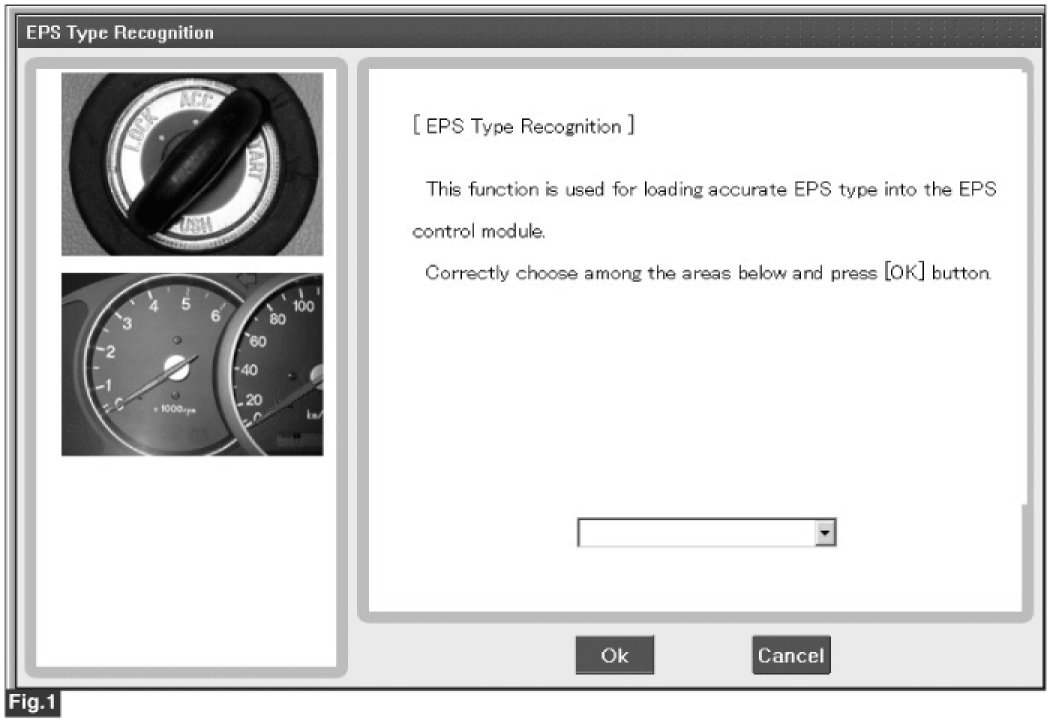

3. Choose the area type (figure 1).
4. Ignition "OFF" & Waiting 20sec.
5. Ignition "ON".
6. Select "Diagnostic Trouble Codes (DTCs)" mode again.
7. Are any DTCs present?
