Monitor DTC Status

C1300 LF/RF External Interference Failure

Scantool Diagnostics

Monitor GDS Data

1. Park the vehicle on an even ground.
2. Connect GDS to Data Link Connector (DLC).
3. IG "ON"

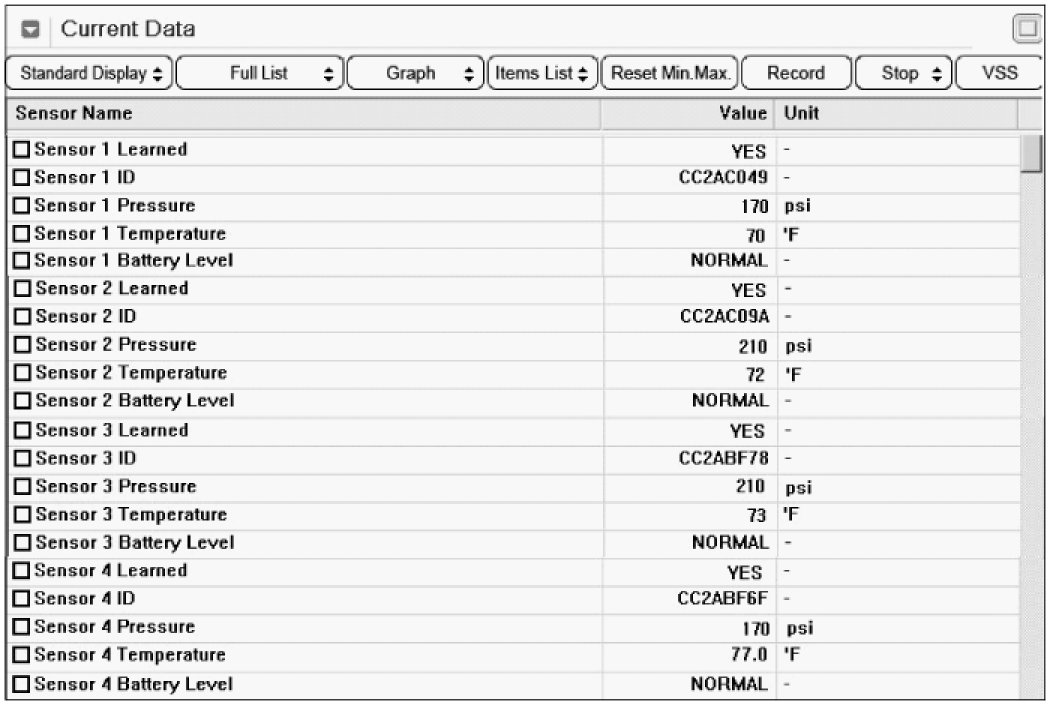

4. Monitor the parameters of 4 active WE sensors data.

Specification :the parameters related to 4 active WE sensors are displayed normally.




5. Are the parameters normal?
