Scantool Diagnosis

C1101 Battery Voltage High

Scantool Diagnosis - Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Start engine and turn the headlight and the heatwire on.

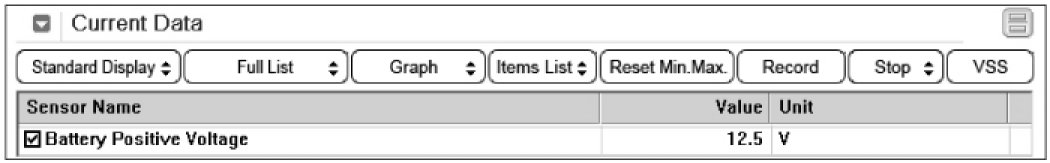

3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.
4. Maintaining ENG. RPM at 2,500 RPM (idle) over 2 minutes.

Specification :less than 17 [V]




5. Is parameter within specifications?
