Monitor DTC Status

B1101 Ignition Voltage High

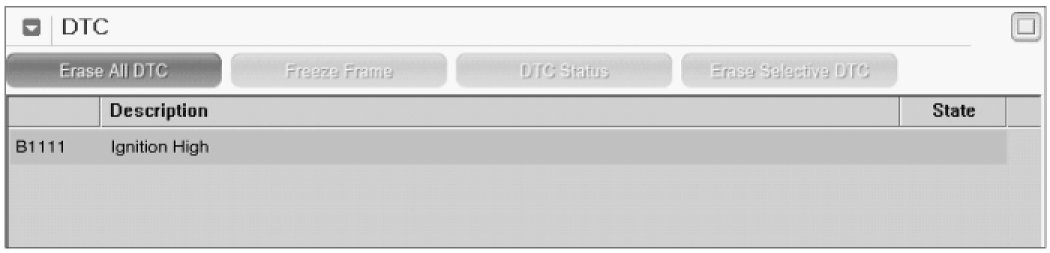

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode of WCS (Weight Classification System)
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.




5. Is DTC present problem?
