Hazard Warning Switch: Testing and Inspection

Inspection

Hazard Lamp Switch
1. Disconnect the negative (-) battery terminal.
2. Remove the center facia panel. .

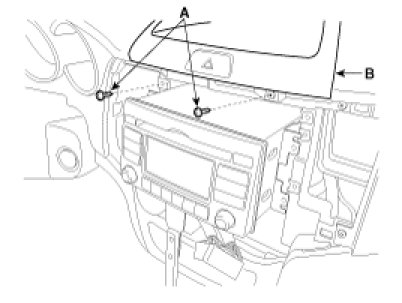

3. Remove the center facia upper panel (B) after loosening the screws (A).

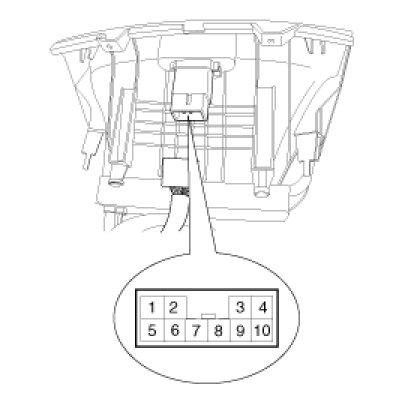

4. Disconnect the connectors.




5. Operate the switch and check for continuity between terminals with an ohmmeter.
