Parking Brake System

INSPECTION

1. Remove the floor console.(refer to body group-console)

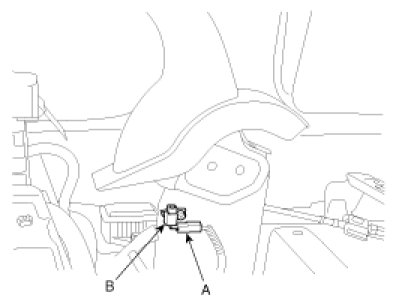

2. Remove the connector (A) from the switch (B).




3. Inspect the continuity between (-) terminal and the ground.
A. When the brake lever is pulled, there should be the continuity between them.
B. When the brake lever is released, there should be no continuity between them.
