Windshield Wiper-Washer Switch





Inspection

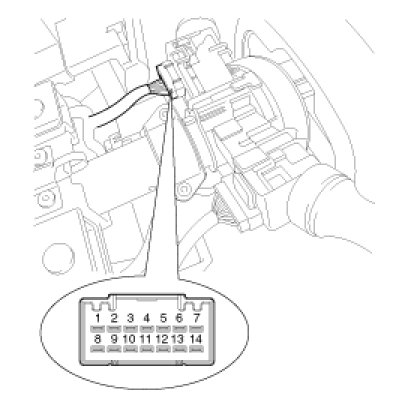

Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch.

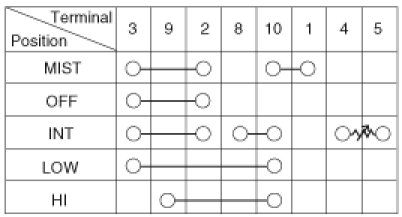

Wiper Switch





Washer Switch
