Backup Lamp Switch: Testing and Inspection

Back Up Lamp Switch Inspection

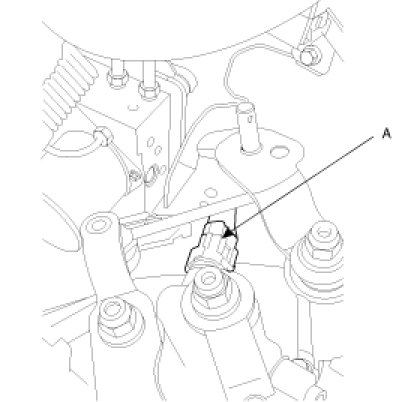

1. Disconnect the back up lamp switch connector(A).




2. Inspect the continuity of the switch. When the shift lever is in reverse range, it should have continuity.
3. Replace the back up lamp switch, if necessary.

Tightening torque :
29.4 - 34.4 Nm(300 - 350Kgf.cm, 21.7 - 25.3lb-ft)
