Backup Lamp Switch: Testing and Inspection

Back-up Lamp Switch

Inspection
1. Disconnect the back up lamp switch connector (A).

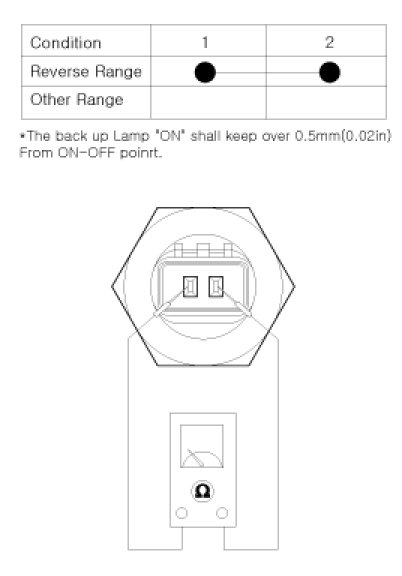

2. Check the continuity between no. 1 and 2 terminals of backup lamp switch.
When the shift lever is in reverse, there should be continuity.
3. If necessary, repair or replace the backup lamp switch.
