Backup Lamp Switch: Service and Repair

Back-up Lamp Switch

Replacement

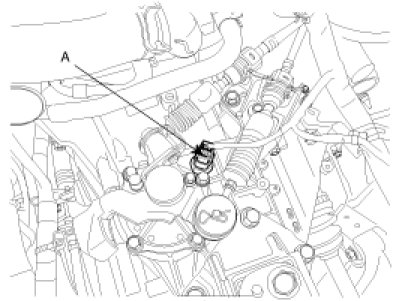

1. Disconnect the back up lamp switch connector (A).




2. Remove the back up lamp switch.
3. Replace a new one and install the back up lamp switch, then connect the connector.

Tightening torque :
30 - 35 Nm (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb-ft)
