Repair procedures: Replacement: Removal

WARNING: This page is about a different car, the 2010 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Use seat covers to avoid damaging any surfaces.

Remove the following items.
1. Front pillar trim, both sides.
2. Windshield wiper arms and cowl cover (Refer to page WINDSHIELD WIPER/WASHER ).

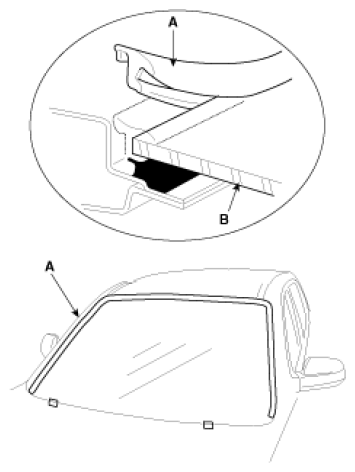

Remove the windshield glass molding (A) from the edge of the windshield (B). If necessary, cut the molding with a utility knife.
Remove the spacer.

Fig 1: Removing Windshield Glass Molding From Edge Of Windshield
Courtesy of KIA MOTORS AMERICA, INC.

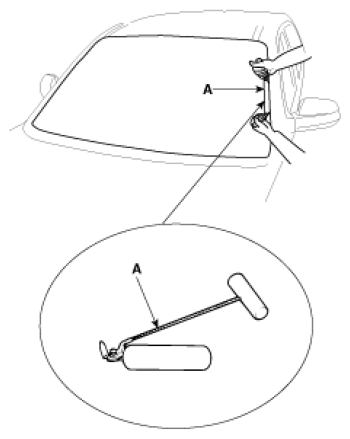

Cut out the windshield sealant using the sealant cutting tool 09861-31100 (A).

Fig 2: Cutting Out Windshield Sealant
Courtesy of KIA MOTORS AMERICA, INC.

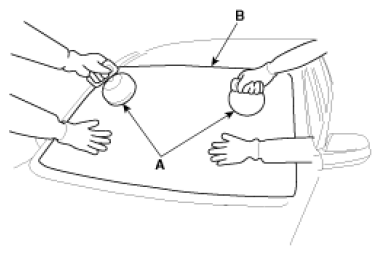

Remove the windshield (A) carefully using the glass holder (B).

Fig 3: Removing Windshield
Courtesy of KIA MOTORS AMERICA, INC.
