Roof Trim Replacement

WARNING: This page is about a different car, the 2010 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Put on gloves to protect your hands.

Sunvisor
1. Remove the sunvisor (A) and holder (B) from each side.

  Fig 1: Identifying Sunvisor & Holder
  Courtesy of KIA MOTORS AMERICA, INC.
Assist Handle
1. Remove the covers (B), and remove the screws, then remove the assist handle (A).

  Fig 2: Identifying Covers & Assist Handle
  Courtesy of KIA MOTORS AMERICA, INC.
Overhead Console Lamp
1. Remove the screw.
2. Pull out the roof console (A).

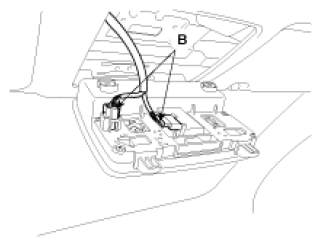

3. Disconnect the connectors (B).

  Fig 3: Identifying Roof Console
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 4: Identifying Connectors
  Courtesy of KIA MOTORS AMERICA, INC.
Lamp
1. Pull out the room lamp (B).
2. Disconnect the connector.

  Fig 5: Identifying Room Lamp
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the hands free mic (A).

Fig 6: Identifying Hands Free Mic
Courtesy of KIA MOTORS AMERICA, INC.

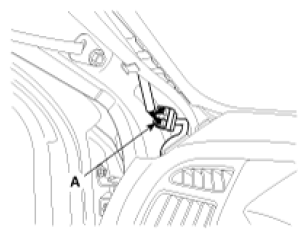

Disconnect the connector (A).

Fig 7: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

Fig 8: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.

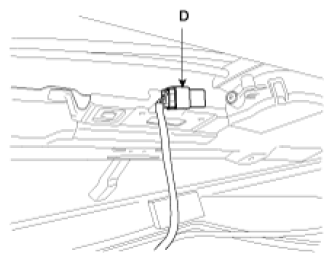

Disconnect the connector (D).

Fig 9: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.

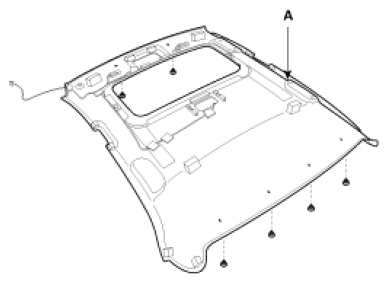

Remove the roof trim (A).

Fig 10: Identifying Roof Trim
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
