Lower Panel Replacement

WARNING: This page is about a different car, the 2010 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crash pad side cover (A).

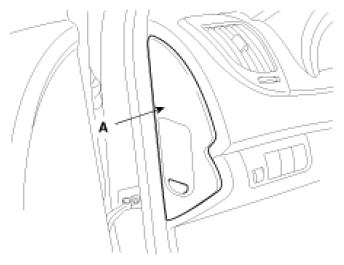

    Fig 1: Identifying Crash Pad Side Cover
    G06495641Courtesy of KIA MOTORS AMERICA, INC.
  2. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).

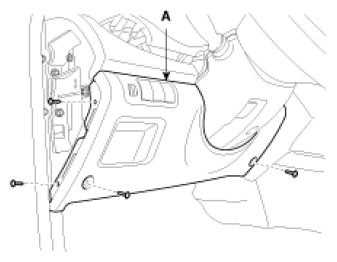

    Fig 2: Identifying Crash Pad Lower Panel & Mounting Screws
    G06495642Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector (A) and (B).

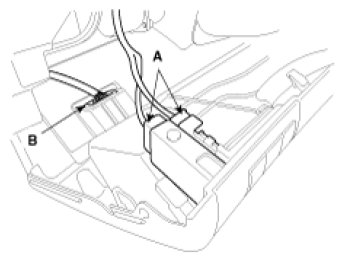

    Fig 3: Identifying Connectors
    G06495643Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connectors (A).

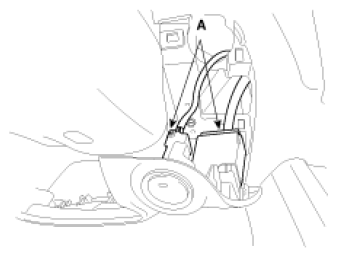

    Fig 4: Identifying Connectors
    G06495644Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
