Glove Box Replacement

WARNING: This page is about a different car, the 2010 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.

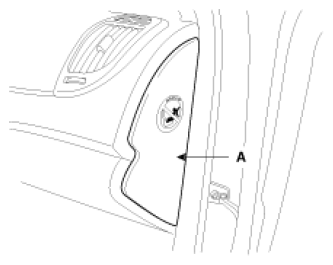

Crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of KIA MOTORS AMERICA, INC.

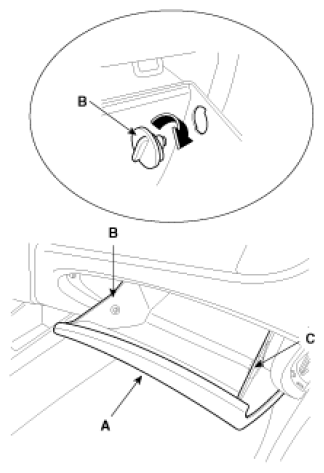

Disconnect the damper (B) from the glove box (A).
Disconnect the damper (C).

Fig 2: Disconnecting Damper From Glove Box
Courtesy of KIA MOTORS AMERICA, INC.

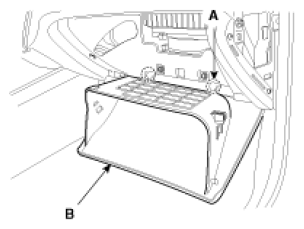

Disconnect the pin (A), then remove the glove box (B).

Fig 3: Removing Glove Box
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the glove box housing (A).

Fig 4: Identifying Glove Box Housing & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
