Audio Assembly Replacement

WARNING: This page is about a different car, the 2010 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center fascia panel.
  2. Disconnect the connectors.

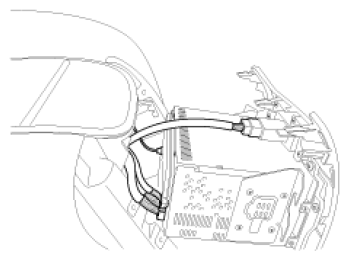

    Fig 1: Identifying Connectors
    G06495645Courtesy of KIA MOTORS AMERICA, INC.
  3. After loosening the audio assembly mounting screws, then remove the audio assembly (A).
    Fig 2: Identifying Audio Assembly & Mounting Screws
    G06495646Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
