Repair procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the side air vent (B) using the SST (A) (09840-1M100). (For Coupe, refer to CRASH PAD . For Sedan, refer to CRASH PAD .)

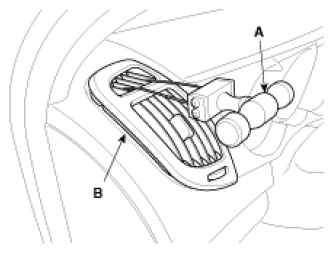

Fig 1: Removing Side Air Vent Using SST (09840-1M100)
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Always use the SST (09840-1M100) to prevent the damage when removing the air vent. (Refer to the (For Coupe, refer to CRASH PAD . For Sedan, refer to CRASH PAD .)
Remove the cluster fascia panel and upper shroud (A) after disconnecting the connector (C).

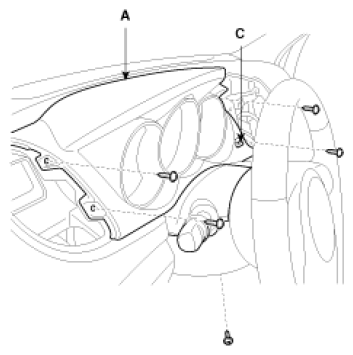

Fig 2: Identifying Upper Shroud & Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cluster fascia (A) from the housing after removing 4 screws.

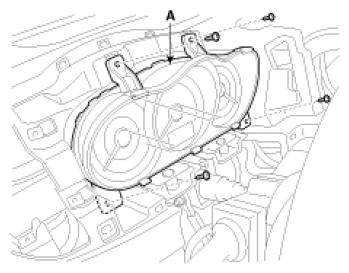

Fig 3: Identifying Cluster Fascia With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the cluster fascia connectors (A) and then remove the cluster.

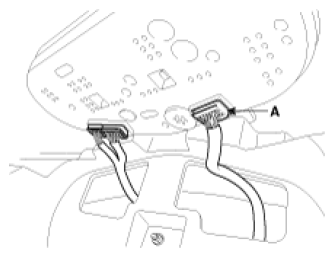

Fig 4: Identifying Cluster Fascia Connectors
Courtesy of KIA MOTORS AMERICA, INC.
