Seat Position Sensor
>>
Locations
>>
Restraint (Airbag Control) - Seat Track Position Sensor (STPS)
Restraint (Airbag Control) - Seat Track Position Sensor (STPS)

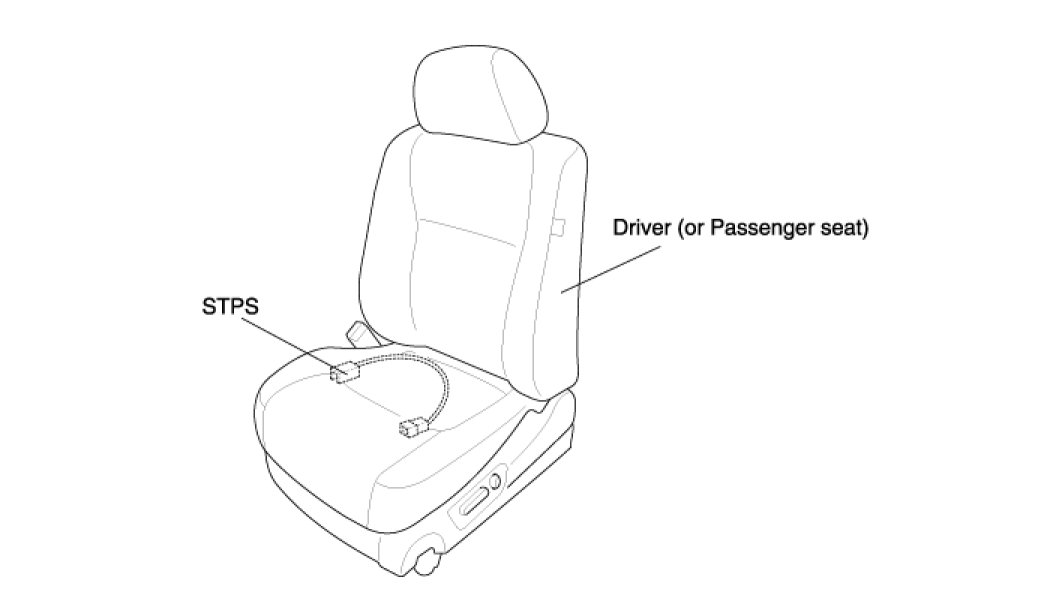

COMPONENTS

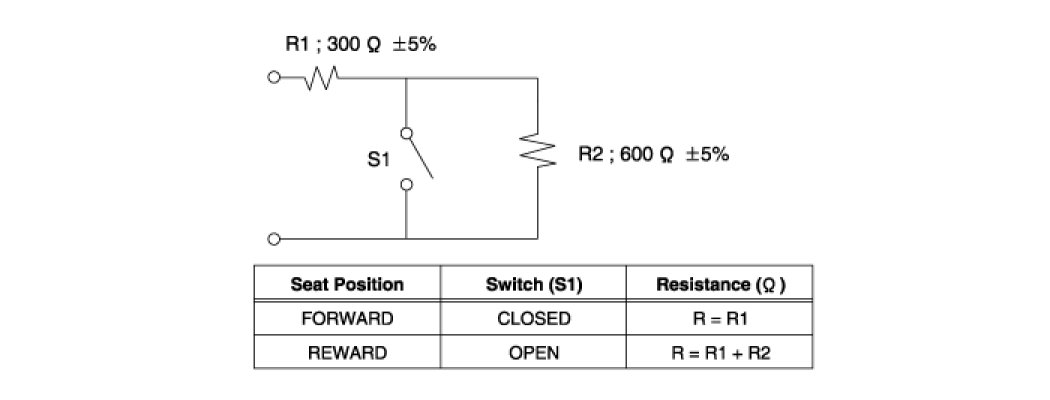

CIRCUIT DIAGRAM AND SPECIFICATION
