Evaporative Emissions System
Evaporative Emissions System
COMPONENTS

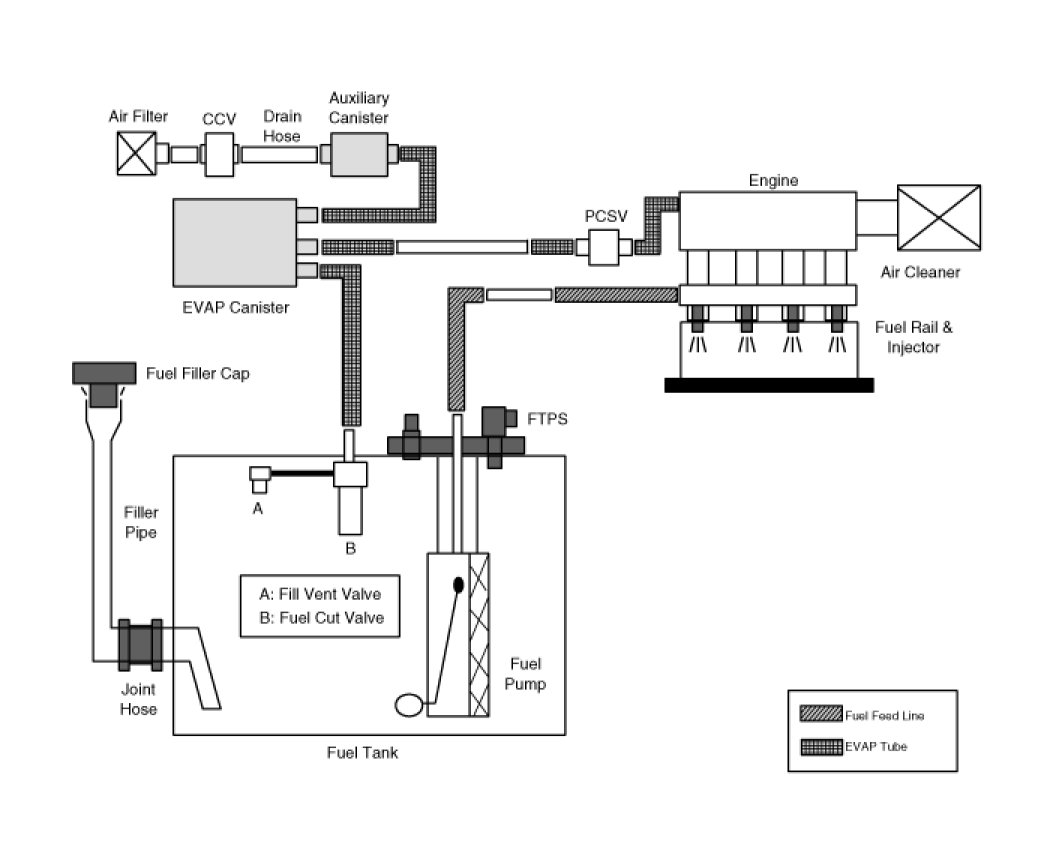

Evaporative Emission Control System - Components:
DESCRIPTION
COMPONENTS

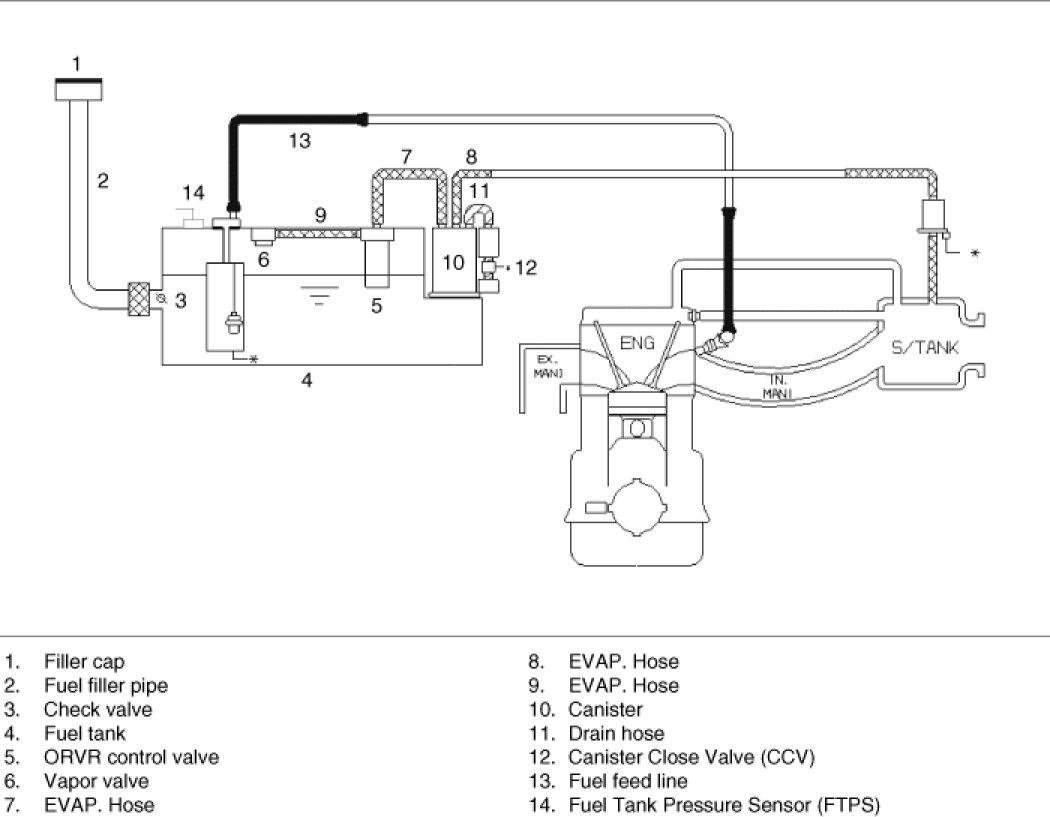

Evaporative Emission Control System Diagram - Description:
