Solenoid Valve

DESCRIPTION

Actuators

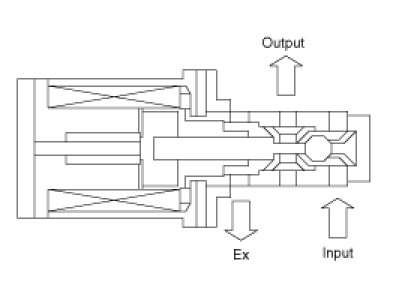

Solenoid Valve for Pressure Control

- Sensor type: Normal open 3-way
- Operating temperature : -30°C ~ 130°C(-22°F - 266°F)
- Frequency:
LR, 2ND, UD, OD: 61.27Hz (at the ATF temp. above -20°C(-4°F))
DCC: 30.64Hz
- Internal resistance:
3.0 ± 0.5 Ohms (LR, 2ND, UD, OD, TCC)
4.35 ± 0.5 Ohms (VFS)
- Surge voltage: 56 V (Except VFS)

(LR, 2ND, UD, OD, DCC)





Location




Solenoid Valves Schedule





*: Reference value.
(DCC solenoid valve will be ON when the operating condition is satisfied)
