Windshield Wiper/Washer Switch





INSPECTION

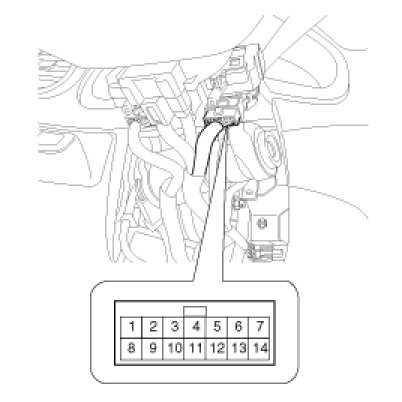

1. Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and washer switch.

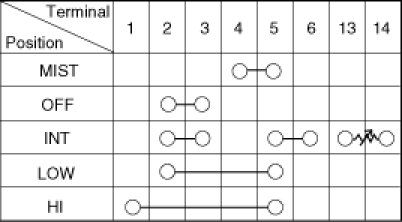

WIPER SWITCH





WASHER SWITCH
