Wiper and Washer Switch Inspection








INSPECTION

WIPER AND WASHER SWITCH INSPECTION

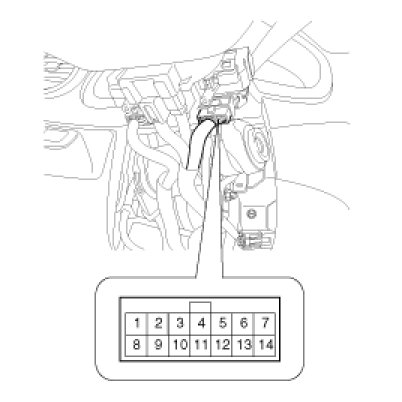

1. With the multi function switch in each position, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch.





WIPER SWITCH





WASHER SWITCH





REAR WIPER & WASHER SWITCH
