Rear Door Lock Switch

INSPECTION

REAR DOOR LOCK SWITCH
1. Remove the rear door trim panel.
2. Remove the rear door module.

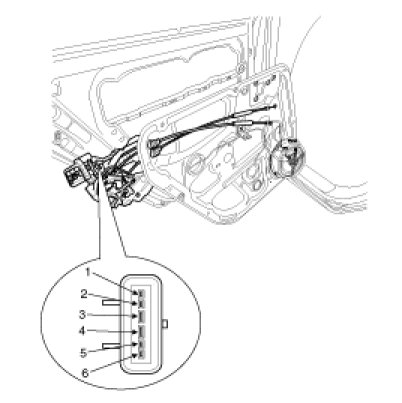

3. Disconnect the connectors (6P) from the actuator.

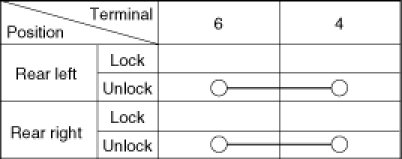

4. Check for continuity between the terminals in each switch position according to the table.
