Front Door Lock Switch

INSPECTION

FRONT DOOR LOCK SWITCH
1. Remove the front door trim.
2. Remove the front door module. .

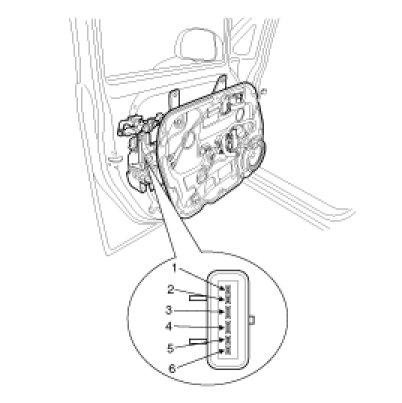

3. Disconnect the connectors (6P) from the actuator.

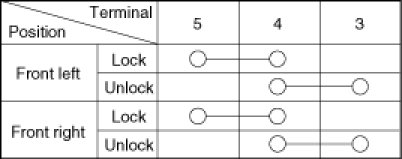

4. Check for continuity between the terminals in each switch position when inserting the key into the door according to the table.
