Headlamp Switch: Testing and Inspection








INSPECTION

LIGHTING SWITCH INSPECTION

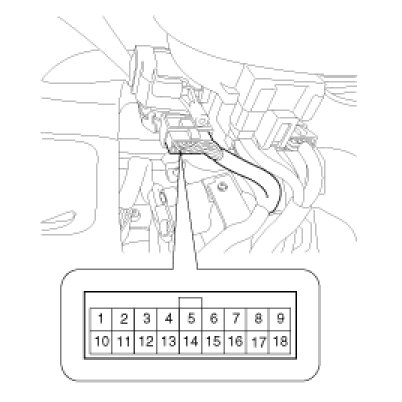

1. With the multi function switch in each position, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch





LIGHTING SWITCH
