Parking Brake Switch

INSPECTION

PARKING BRAKE SWITCH

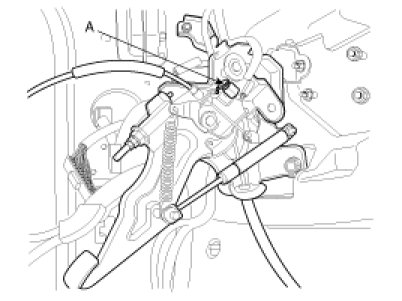

The parking brake switch is a pull type. It is located at the side of the parking brake lever.
1. Check that there is continuity between the terminal and switch body with the switch (A) ON.
2. Check that there is no continuity between the terminal and switch body with the switch OFF.
If continuity is not as specified, replace the switch or inspect its ground connection.
