Repair Procedures

REMOVAL

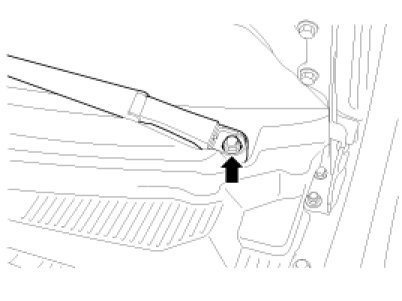

1. Remove the windshield wiper arm and blade after removing a nut.

TORQUE : 28 - 32 Nm (2.8 - 3.2 kgf.m, 20 - 23.1 lbf.ft)

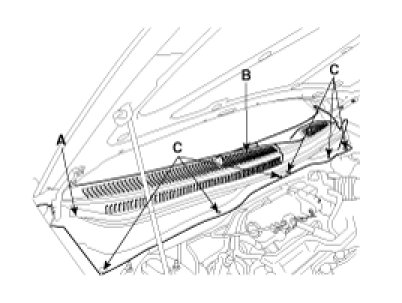

2. Remove the weather strip (A) then remove the cowl top cover (B) after removing 6 clips (C).

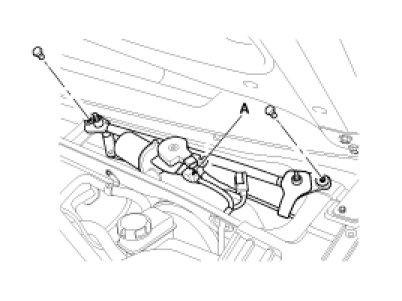

3. Remove the windshield wiper motor and linkage assembly after removing 2 bolts. Disconnect the wiper motor connector (A) from the wiper motor & linkage assembly.

TORQUE : 7-11Nm (0.7-1.1, kgf.m, 5.1-8.1 lbf.ft)





4. Installation is the reverse of removal.

INSTALLATION

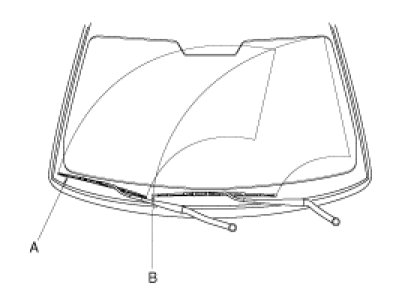

1. Install the wiper arm and blade to the specified position.

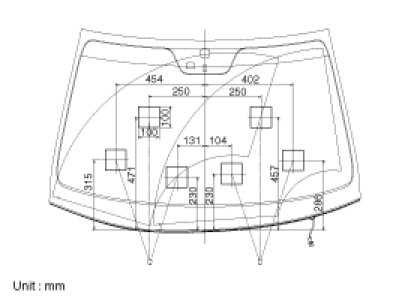

2. Set the washer nozzle on the specified spray position.
