Manual Transaxle System(prior to 2008.11.19)

DRIVE SHAFT OIL SEAL

REPLACE
1. Disconnect the drive shaft from the transaxle. (see "DS" group)

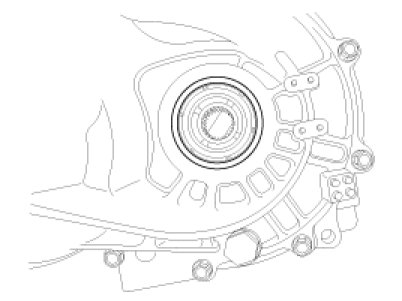

2. Using a flat-tip screwdriver, remove the oil seal.

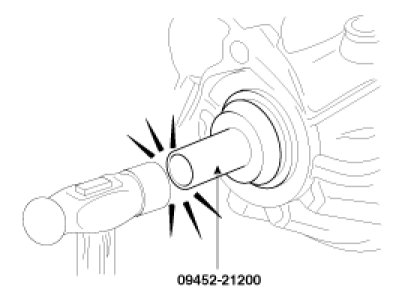

3. Using the special tool(09452-21200), tap the drive shaft oil seal into the transaxle.
