Automatic Transaxle System

DRIVE SHAFT OIL SEALS REPLACEMENT
1. Disconnect the drive shaft from the transaxle.

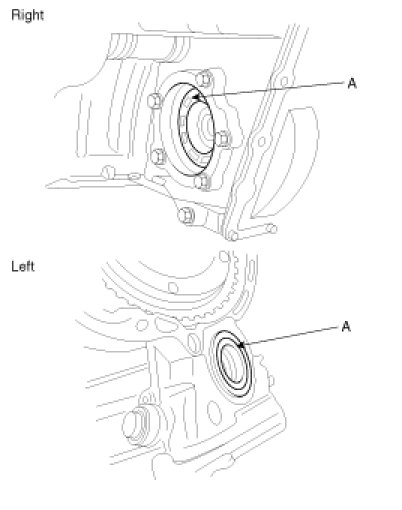

2. Using a flat-tip (-) screwdriver, remove the oil seal(A).




3. Apply a coating of the transaxle fluid to the lip of the oil seal.

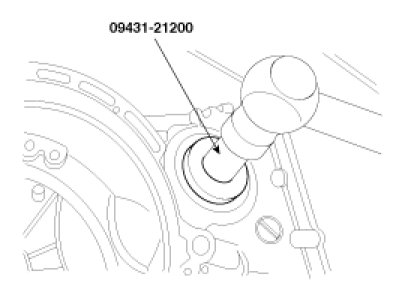

4. Using the special tool (09431-21200), tap the drive shaft oil seal into the transaxle.
