Repair Procedures

REMOVAL

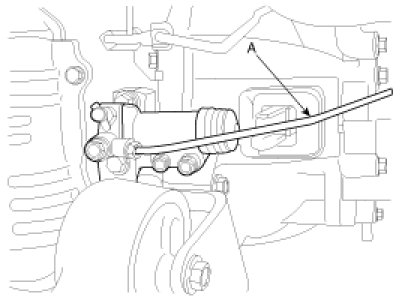

1. Disconnect the clutch tube(A).




2. Remove the clutch release cylinder mounting bolt.

INSTALLATION

1. Coat the clevis push rod specified grease.

Specified grease: CASMOLY L9508

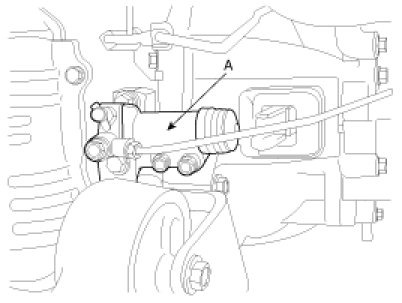

2. Install the release cylinder(A) to the transaxle.

TORQUE :
15 - 22Nm (150 - 220 kgf.cm, 11 - 16 lb-ft)





3. Install the clutch tube(A).
