Disassembly

DISASSEMBLY

1. Remove the clutch hose, valve plate, spring, push rod, and boot.
2. Remove any dirt from the piston bore opening of the release cylinder.

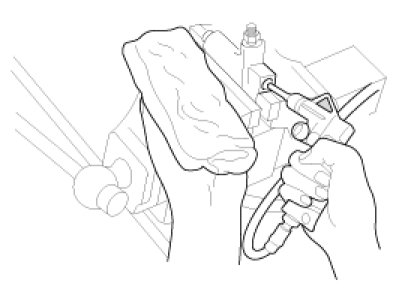

3. Remove the piston from the release cylinder using compressed air.

CAUTION:
- Use rags to prevent the piston from popping out and causing injury.
- Apply compressed air slowly. Keep the fluid from splashing in your eyes or on your skin.
