Disassembly

DISASSEMBLY

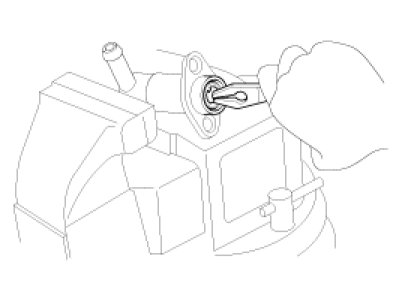

1. Remove the piston stop ring.
2. Pull out the push rod and piston assembly.
3. Remove the reserve tank band, reserve tank cap, and reserve tank.

NOTE:
1. Use care not to damage the master cylinder body and piston assembly.
2. Do not disassemble the piston assembly.
