Pinout Values and Diagnostic Parameters

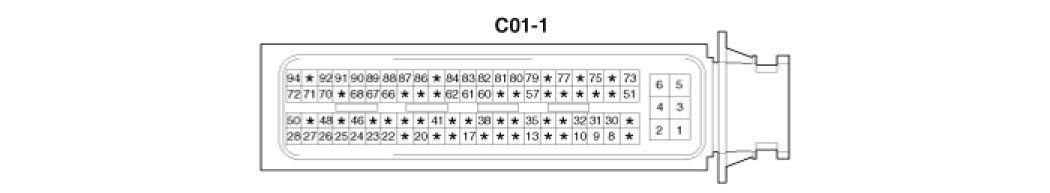

INTEGRATED TCM SIDE CONNECTOR

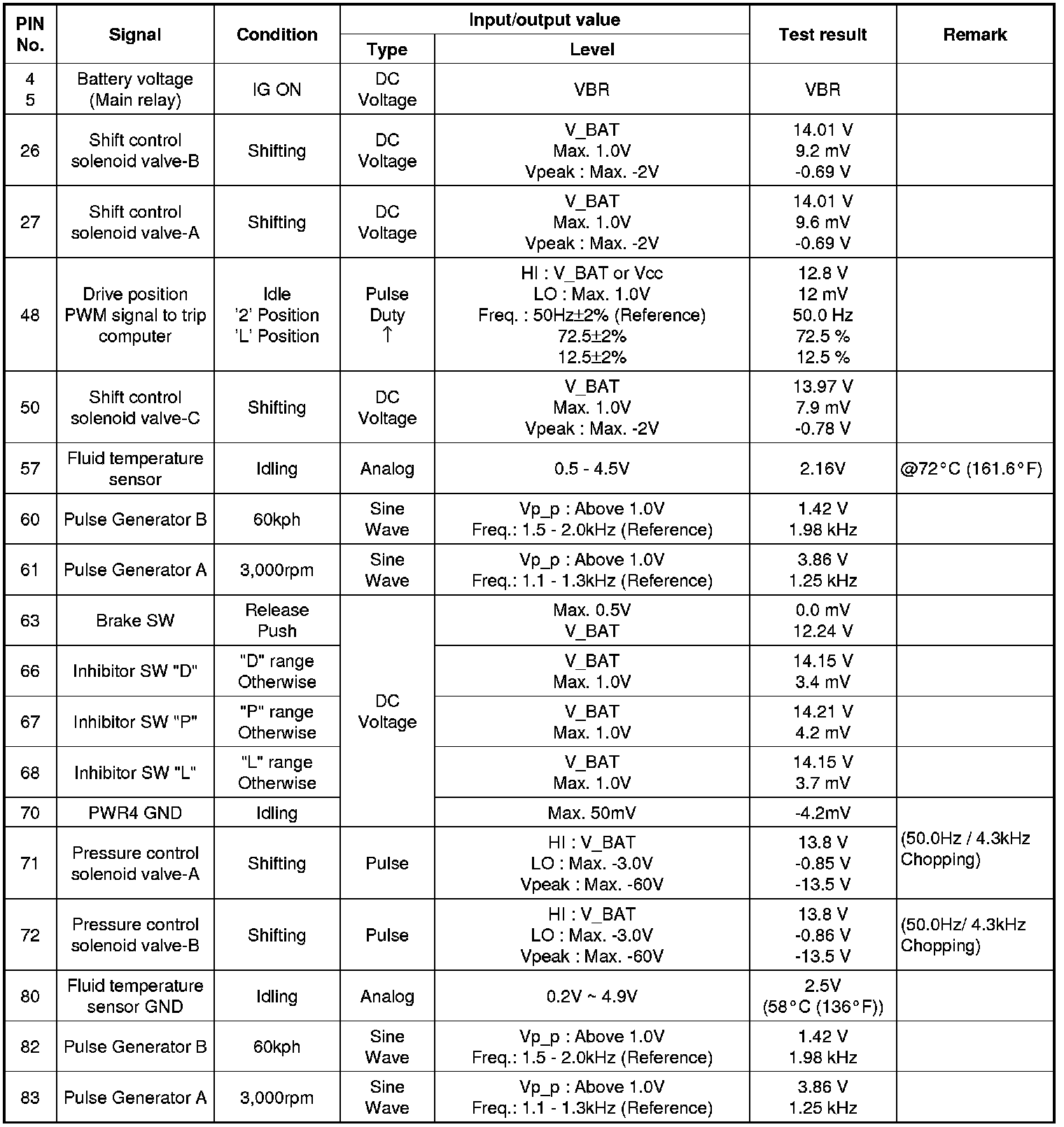

INTEGRATED TCM INPUT/OUTPUT TERMINAL VOLTAGE









- V_BAT : Battery Voltage
- VBR : Converted battery voltage via main relay
