Standard Hydraulic Pressure Test

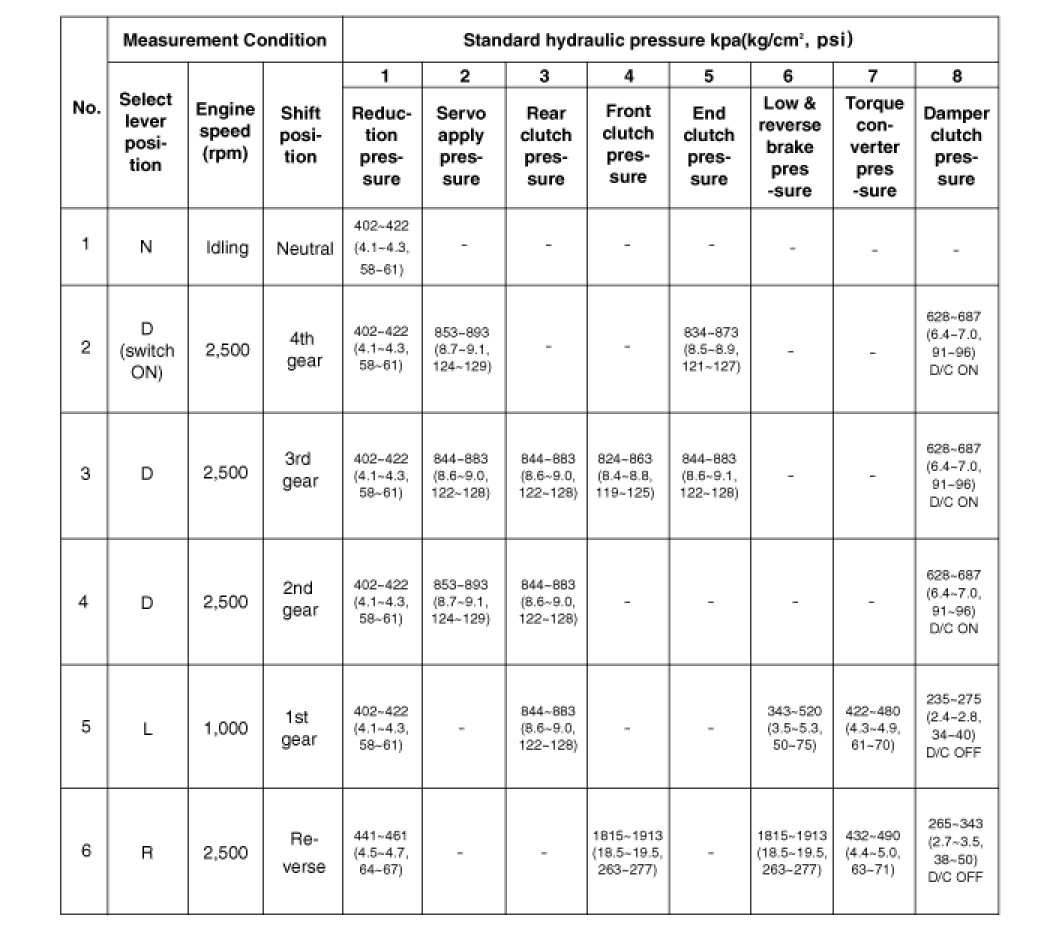

STANDARD HYDRAULIC PRESSURE TEST





NOTE:
- "-" is 0.2(0.3)kg/cm2 or less and "( )" is the reverse.
- SW-ON : Turn the overdrive control switch ON.
- SW-OFF : Turn the overdrive control switch OFF.
- The hydraulic pressure may be more than standard value at the ambient temperature.
