Electronic Control System

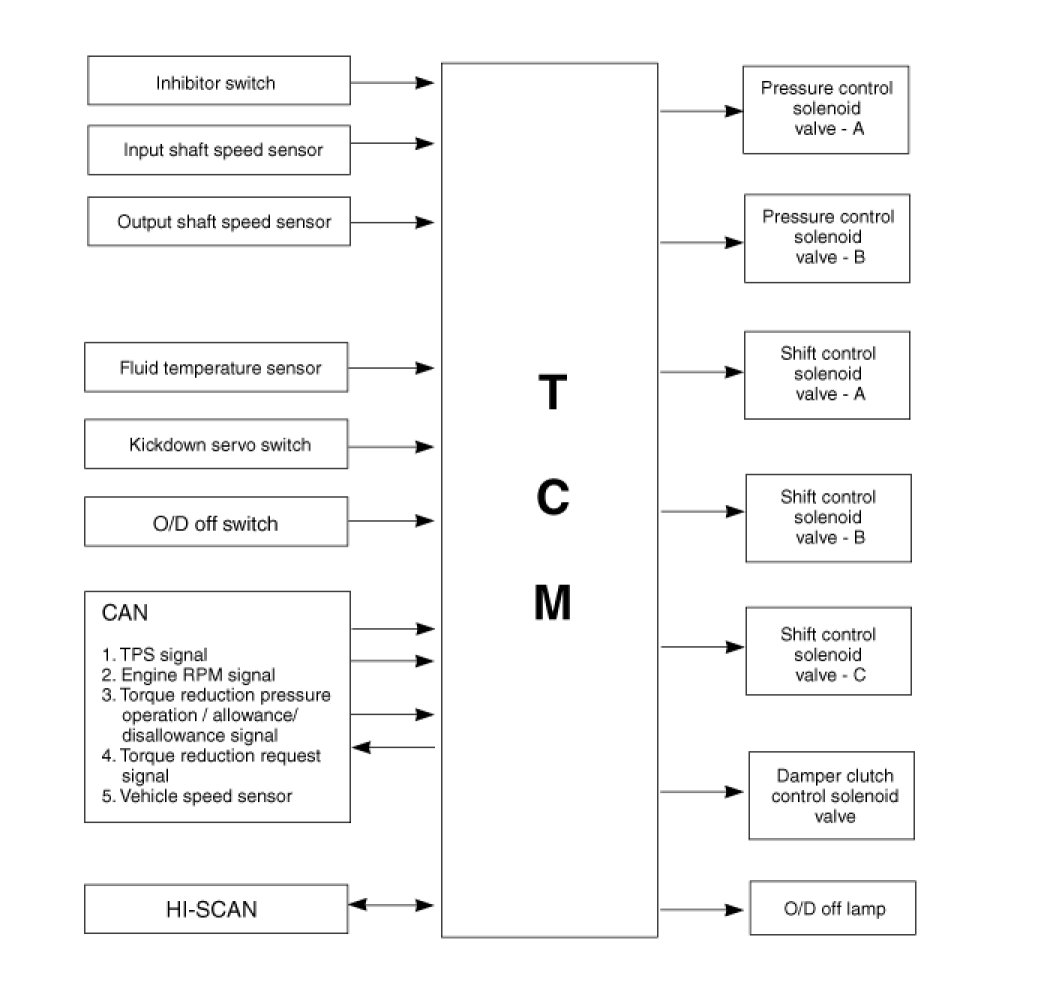

ELECTRONIC CONTROL SYSTEM

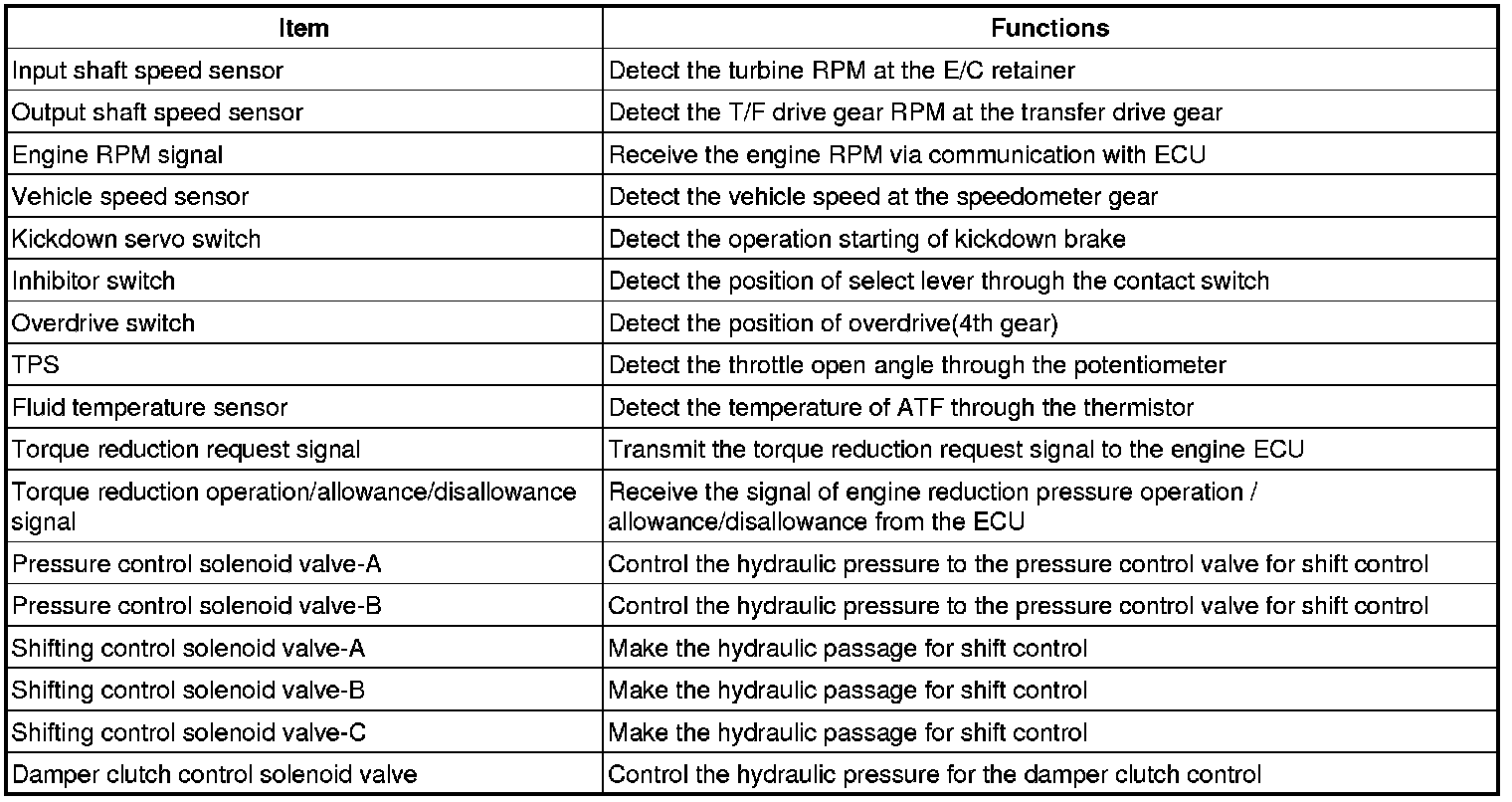

SENSOR AND ACTUATOR FUNCTION





* E/C : End Clutch
T/F : Transfer

INTEGRATED TCM SIDE CONNECTOR




INTEGRATED TCM INPUT/OUTPUT TERMINAL VOLTAGE









- V_BAT : Battery Voltage
- VBR : Converted battery voltage via main relay
