Repair Procedures

REMOVAL

1. Remove the rear tire and wheel.




2. Remove the wheel speed sensor wire bracket bolt(A) and the brake pressure hose bracket bolt(B).

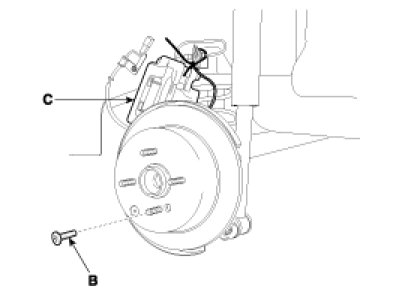

3. Remove the brake caliper assembly bolt(A) and the brake disk mounting screw(B).





NOTE:
Hang the brake caliper assembly(C) tightly on a proper place with wire.




4. Remove the rear hub bearing assembly bolts(A).




5. Remove the rear hub bearing assembly(A).

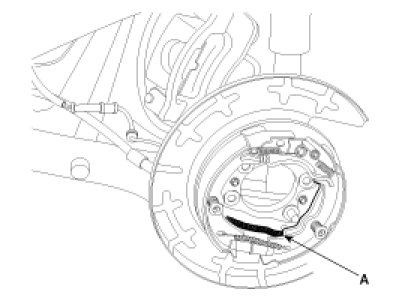

6. Remove the parking brake wire(A).

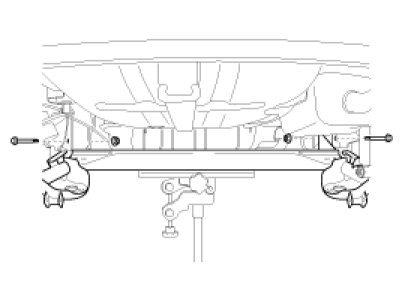

7. Remove the rear shock absorber mounting bolt(A) from the rear torsion axle beam which is supported by a jack.




8. Release the rear coil spring tension by lowering the jack and remove the rear coil spring.




9. Remove the rear torsion axle beam mounting bolts.






INSTALLATION

1. Installation is reverse of removal.
2. Install the following parts with the specified torque.
