Checking Steering Angle

CHECKING STEERING ANGLE

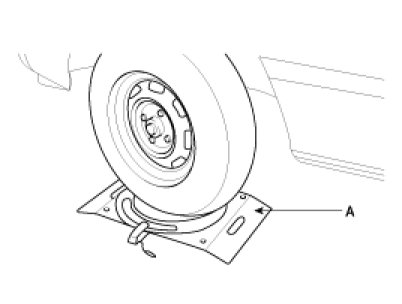

1. Place the front wheel on a turning radius gauge and measure the steering angle.

Standard value Steering angle : See ST-2




2. If the measured value is not within the standard value, adjust the linkage.
