Repair Procedures

REAR SEAT BELT REPLACEMENT

CAUTION:
1) When installing the belt, make sure not to damage the pretensioner.

1. Remove the following items first.
A. Rear seat assembly.
B. Front and rear door scuff trim.
C. Rear pillar trim.

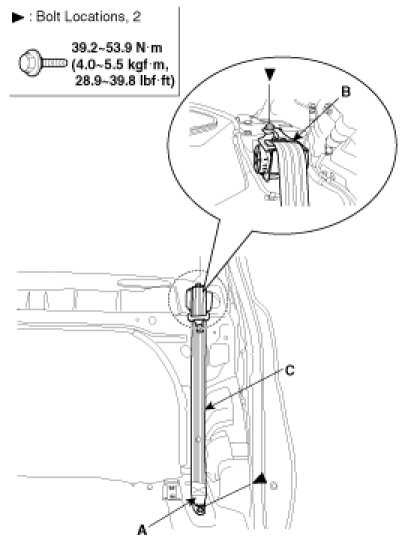

2. Remove the lower anchor (A).
3. Remove the package tray trim.
4. After loosening the retractor (B) mounting bolt, remove the rear seat belt (C).





REAR CENTER SEAT BELT REPLACEMENT
1. Remove the following items first.
A. Rear seat assemble.
B. Rear wheel guard and rear door scuff trim.
C. Rear pillar trim.
D. Package tray.

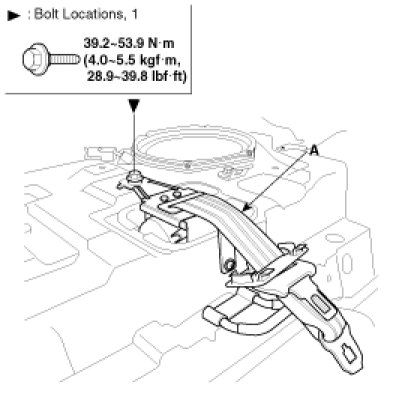

2. Remove the rear center seat belt(A).




3. Installation is the reverse of removal.
