Repair Procedures

REPLACEMENT

FRONT SEAT BELT REPLACEMENT

CAUTION:
1) When installing the belt, make sure not to damage the pretensioner.

1. Remove the following items first.
A. Front seat assembly.
B. Front and rear door scuff trim.

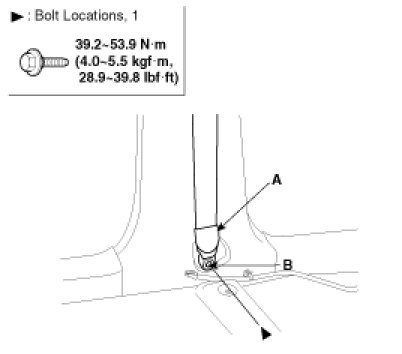

2. After raise the lower anchor cover (A), loosen the lower anchor mounting bolt (B).




3. Remove the center pillar lower trim.
4. Remove the center pillar upper trim.

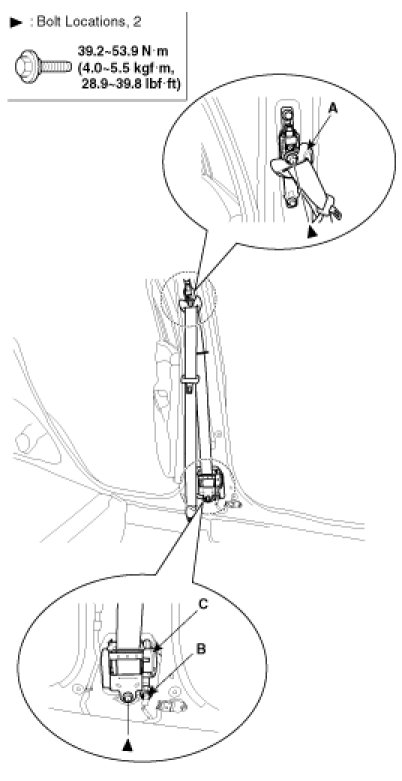

5. Remove the upper anchor (A).
6. After disconnecting the pretensioner connector lock pin, remove the connector(B), Loosen the mounting bolt, then remove the pretensioner (C).
