Seat Belt Buckle: Service and Repair

REPLACEMENT

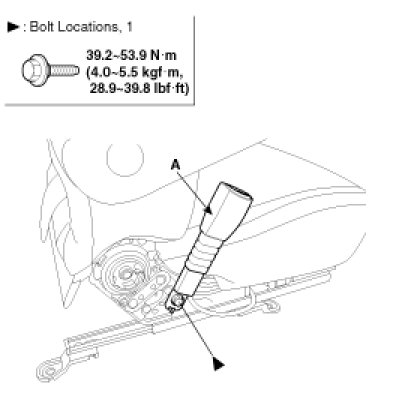

FRONT SEAT BELT BUCKLE REPLACEMENT
1. Remove the following items first.
A. Front seat assembly.
2. Remove the recliner cover(C).




3. Remove the seat belt buckle(A).




4. Installation is the reverse of removal.

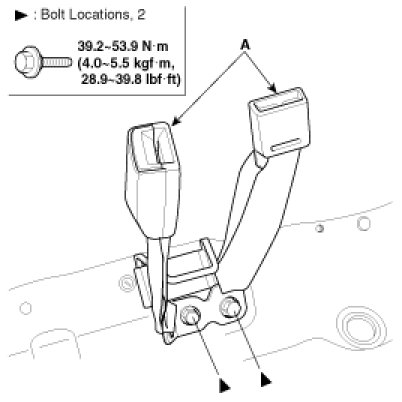

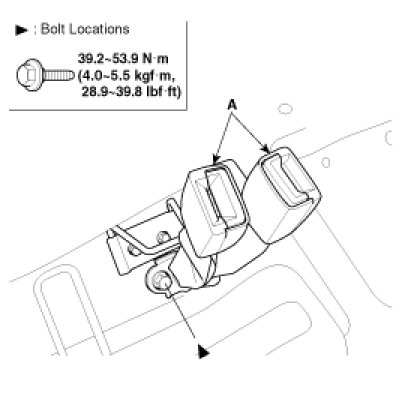

REAR SEAT BELT BUCKLE REPLACEMENT
1. After cushion frame hinge mounting bolt, fold the cushion.
2. Remove the seat belt buckle (A).
3. Installation is the reverse of removal.
