Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

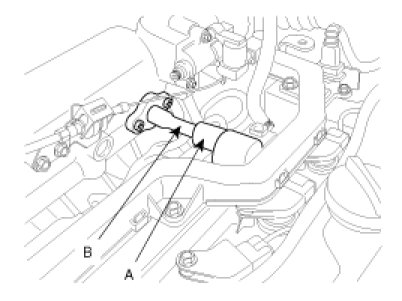

1. Remove the valve pad (A) and disconnect the vacuum hose (B).




2. Remove the PCV Valve.

INSTALLATION

1. Install the PCV valve according to the reverse order of the "REMOVAL" procedure.

PCV Valve Installation : 7.8 - 11.8 Nm (0.8 - 1.2 kgf-m, 5.8 - 8.7 lbf-ft)
