Repair Procedures

REPLACEMENT

1. Loosen the wheel nuts slightly.
2. Raise the rear of the vehicle and support it with safety stand in a proper location.

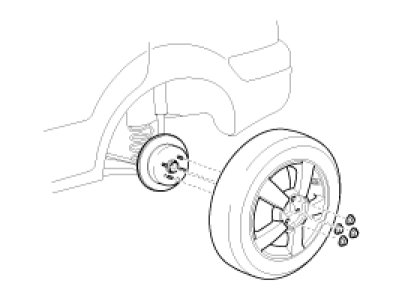

3. Remove the rear wheel and tire.

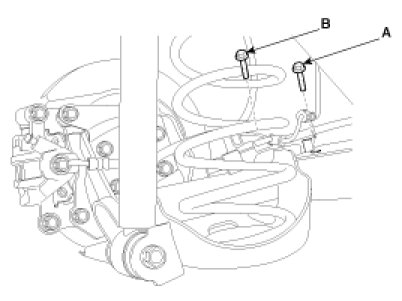

4. Remove the wheel speed sensor wire bracket bolt(A) and the parking brake wire bracket bolt(B).

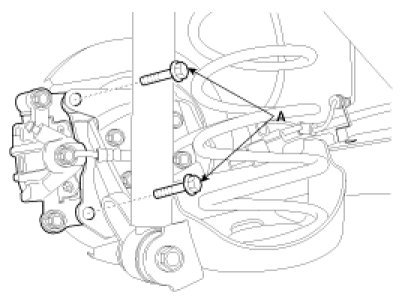

5. Remove the brake caliper assembly bolt(A) and the brake disk mounting screw(B).





NOTE:
Hang the brake caliper assembly(C) tightly on a proper place with wire.

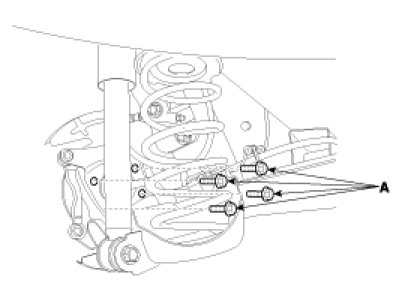

6. Remove the rear hub bearing assembly bolts(A).

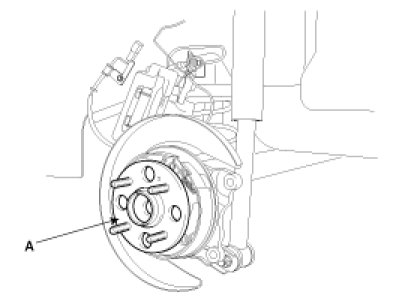

7. Remove the rear hub bearing assembly(A).




8. The installation is reverse of the removal.

Tightening torque Nm (kgf-m,lb-ft) :
Hub bearing assembly ; 50 - 60 (5 - 6, 36 - 43)
