Manual Transaxle System(2008.11.19 - on)

Inspection

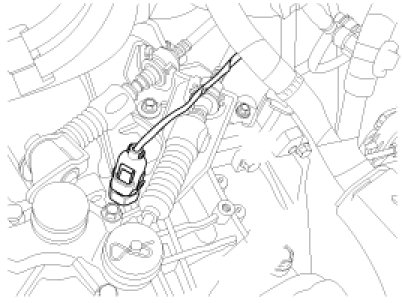

1. Disconnect the back up lamp switch connector.

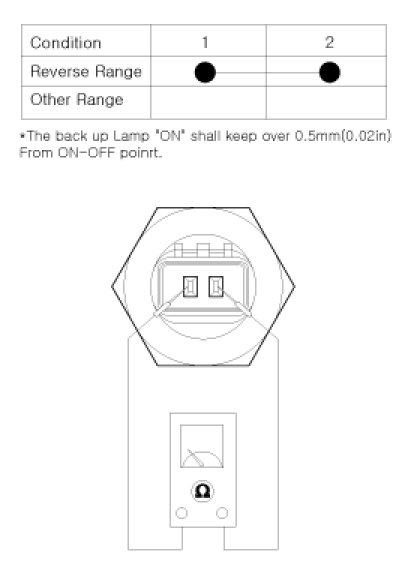

2. Check the continuity between no. 1 and 2 terminals of backup lamp switch.
When the shift lever is in reverse, there should be continuity.
3. If necessary, repair or replace the backup lamp switch.
