Center Mounted Brake Lamp: Service and Repair










REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Open the trunk lid (Tail gate) and then disconnect the connector of high mounted stop lamp.

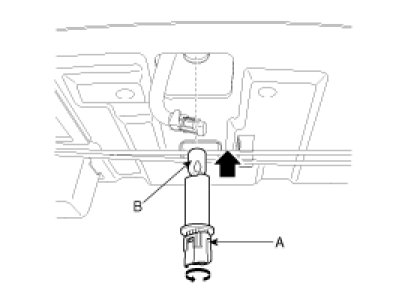

3. Replace the bulb (B) by rotating the bulb holder (A) to the clockwise direction.
